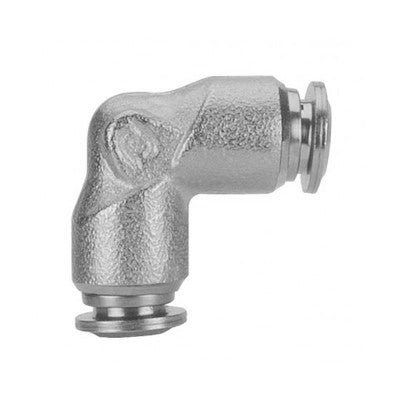

60130-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | 90° Elbow | FKM Seal | Stainless Steel
60130-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | 90° Elbow | FKM Seal | Stainless Steel
AIGNEP

60130-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | 90° Elbow | FKM Seal | Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Union Elbow Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

Product Number Tube C L CH
60130-04 1/4" 12.5 mm 21 mm 11 mm
60130-06 3/8" 17.5 mm 26 mm 16 mm
60130-08 1/2" 20.5 mm 30.5 mm 19 mm
60130-6 6 mm 12.5 mm 21 mm 11 mm
60130-10 10 mm 17.5 mm 26 mm 16 mm
60130-12 12 mm 20.5 mm 30.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
