60111X-10-1/2 by AIGNEP | 60/62 Series | Swivel | 10mm Tube x 1/2" Swift-Fit Male | 90° Elbow | Stainless Steel
60111X-10-1/2 by AIGNEP | 60/62 Series | Swivel | 10mm Tube x 1/2" Swift-Fit Male | 90° Elbow | Stainless Steel

60111X-10-1/2 by AIGNEP | 60/62 Series | Swivel | 10mm Tube x 1/2" Swift-Fit Male | 90° Elbow | Stainless Steel

Sale price$48.23
Buy More, Save More!
Quantity Price Each
10–39 $45.34
40–79 $41.00
80+ $36.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • 60/62 Series
Shape:

90 Degree

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/2in Male Swift-Fit

Swivel Elbow Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

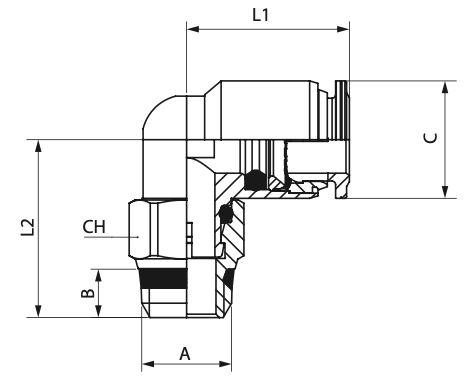

Product Number Tube A B (IN) B L1 L2 CH1 CH2
60111x-6-1/8 6 mm 1/8" 5.5 mm 12.5 mm 18 mm 17 mm 11 mm
60111x-6-1/4 6 mm 1/4" 7 mm 12.5 mm 18 mm 19 mm 15 mm
60111x-8-1/4 8 mm 1/4" 7 mm 14.5 mm 20 mm 21.5 mm 15 mm
60111x-10-1/4 10 mm 1/4" 7 mm 17 mm 23.5 mm 25.5 mm 15 mm
60111x-10-3/8 10 mm 3/8" 7.5 mm 17 mm 23.5 mm 23.5 mm 17 mm
60111x-10-1/2 10 mm 1/2" 9 mm 17 mm 23.5 mm 27 mm 21 mm
60111x-12-3/8 12 mm 3/8" 7.5 mm 20.5 mm 27.5 mm 26 mm 17 mm
60111x-12-1/2 12 mm 1/2" 9 mm 20.5 mm 27.5 mm 27 mm 21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
