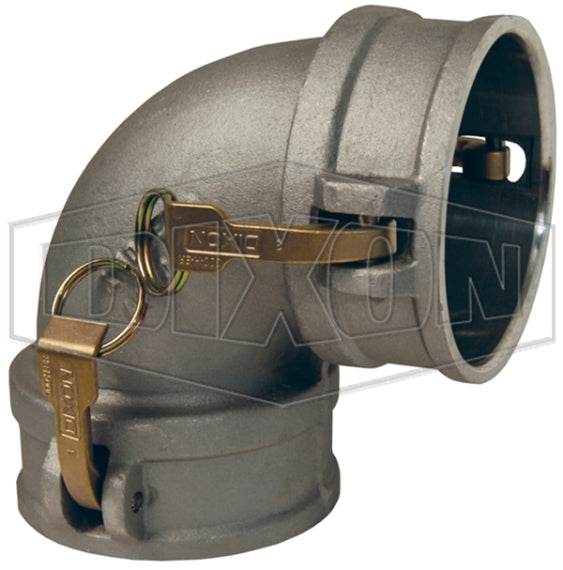

600DD-90AL by Dixon Valve | Cam & Groove Spool Coupler | 90° Elbow | Type DD | 6" Coupler x 6" Coupler | Aluminum

600DD-90AL by Dixon Valve | Cam & Groove Spool Coupler | 90° Elbow | Type DD | 6" Coupler x 6" Coupler | Aluminum

Sale price$1,382.59

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type DD | Coupler x Coupler

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
4–7 $1,299.63
8–14 $1,244.33
15+ $1,106.07
Discounts applied in cart/checkout.
Construction:
  • Seal: Nitrile Rubber
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
200DD-90AL - 2" 250 PSI
300DD-90AL 300DD-90SS* 3" 125 PSI
400DD-90AL - 4" 100 PSI
600DD-90AL - 6" 75 PSI

* Parts are produced as a welded fabrication.

Product Data:

MAWP:

75

Shape:

90 Degree

Cam & Groove Type:

Type DD (Spool Coupler)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
