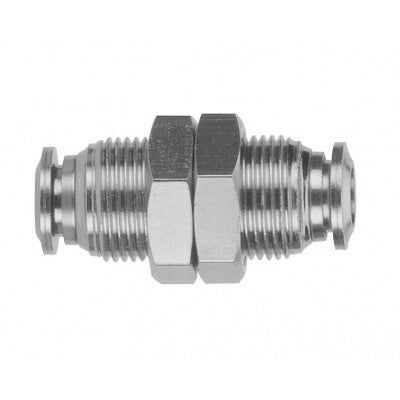

60050-6 by AIGNEP | 60/62 Series | Bulkhead Union | 6mm Tube Push Connect | FKM Seal | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $29.79 |
| 40–79 | $26.94 |
| 80+ | $23.77 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Bulkhead Union Stainless
Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
| Product Number | Tube | M | CH | L | A Max |
|---|---|---|---|---|---|
| 60050-53 | 5/32" | M12 x 1 | 17 mm | 31 mm | 7 mm |
| 60050-04 | 1/4" | M14 x 1 | 17 mm | 35 mm | 9 mm |
| 60050-05 | 5/16" | M16 x 1 | 19 mm | 37 mm | 10.5 mm |
| 60050-06 | 3/8" | M20 x 1 | 24 mm | 42 mm | 12.5 mm |
| 60050-08 | 1/2" | M22 x 1 | 26 mm | 48 mm | 16.5 mm |
| 60050-6 | 6 mm | M14X1 | 17 mm | 35 mm | 9.5 mm |
| 60050-10 | 10 mm | M20X1 | 26 mm | 42 mm | 12.5 mm |
| 60050-12 | 12 mm | M22X1 | 26 mm | 48 mm | 16.5 mm |
