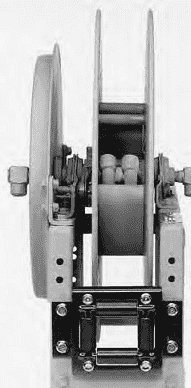

618-30-31-15.5A by Hannay | #41-39 | 600 Series | Spring Rewind Dual Hose Reel

618-30-31-15.5A by Hannay | #41-39 | 600 Series | Spring Rewind Dual Hose Reel

Sale price$1,681.61



600 Spring Rewind Dual Hose Reels To handle dual 1/4" through 3/4" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,580.71
8–14 $1,513.45
15+ $1,345.29
Discounts applied in cart/checkout.
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Rollformed channel frame for heavy duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlets 90 deg. balanced pressure swivel joints 1/2" female NPT threads. (1" inlet available).
  • Standard outlets 1/2" female NPT threads. (3/4" outlet available).
  • Pressures to 3000 psi (207 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • 4-way roller assembly.
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2" 3/4"
O.D. (in) 5/8" 3/4" 7/8" 1-9/32" A B C D E F G H X Y
615-23-24-10.5B (two) 65' lengths (two) 60' lengths (two) 30' lengths N/A 53 lbs. 8.25" 3" 10.5" 23.25" 24.38" 13" 23.88" 12.5" 3.5" 20"
617-25-26-15.5B (two) 75' lengths (two) 75' lengths (two) 50' lengths N/A 93 lbs. 10.25" 5" 15.5" 25" 26.12" 15" 25.88" 13" 5.5" 21.75"
617-25-26-15.5A (two) 100' lengths (two) 85' lengths N/A N/A 120 lbs. 10.25" 5" 15.5" 25" 26.12" 15.75" 25.88" 13.5" 5.5" 21.75"
618-30-31-15.5A N/A N/A (two) 100' lengths (two) 50' lengths 130 lbs. 11.25" 6" 15.5" 28.5" 29.62" 16.75" 31.38" 16.75" 6.5" 25.25"

Product Data:

Series:
  • 600 Series

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
