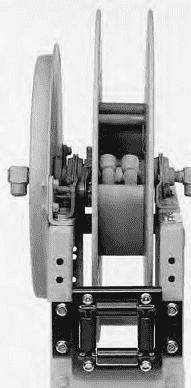

617-25-26-15.5B by Hannay | #41-32 | 600 Series | Spring Rewind Dual Hose Reel

617-25-26-15.5B by Hannay | #41-32 | 600 Series | Spring Rewind Dual Hose Reel

Sale price$1,445.49



600 Spring Rewind Dual Hose Reels To handle dual 1/4" through 3/4" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,358.76
8–14 $1,300.94
15+ $1,156.39
Discounts applied in cart/checkout.

Product Data:

Series:
  • 600 Series
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Rollformed channel frame for heavy duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlets 90 deg. balanced pressure swivel joints 1/2" female NPT threads. (1" inlet available).
  • Standard outlets 1/2" female NPT threads. (3/4" outlet available).
  • Pressures to 3000 psi (207 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • 4-way roller assembly.
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2" 3/4"
O.D. (in) 5/8" 3/4" 7/8" 1-9/32" A B C D E F G H X Y
615-23-24-10.5B (two) 65' lengths (two) 60' lengths (two) 30' lengths N/A 53 lbs. 8.25" 3" 10.5" 23.25" 24.38" 13" 23.88" 12.5" 3.5" 20"
617-25-26-15.5B (two) 75' lengths (two) 75' lengths (two) 50' lengths N/A 93 lbs. 10.25" 5" 15.5" 25" 26.12" 15" 25.88" 13" 5.5" 21.75"
617-25-26-15.5A (two) 100' lengths (two) 85' lengths N/A N/A 120 lbs. 10.25" 5" 15.5" 25" 26.12" 15.75" 25.88" 13.5" 5.5" 21.75"
618-30-31-15.5A N/A N/A (two) 100' lengths (two) 50' lengths 130 lbs. 11.25" 6" 15.5" 28.5" 29.62" 16.75" 31.38" 16.75" 6.5" 25.25"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
