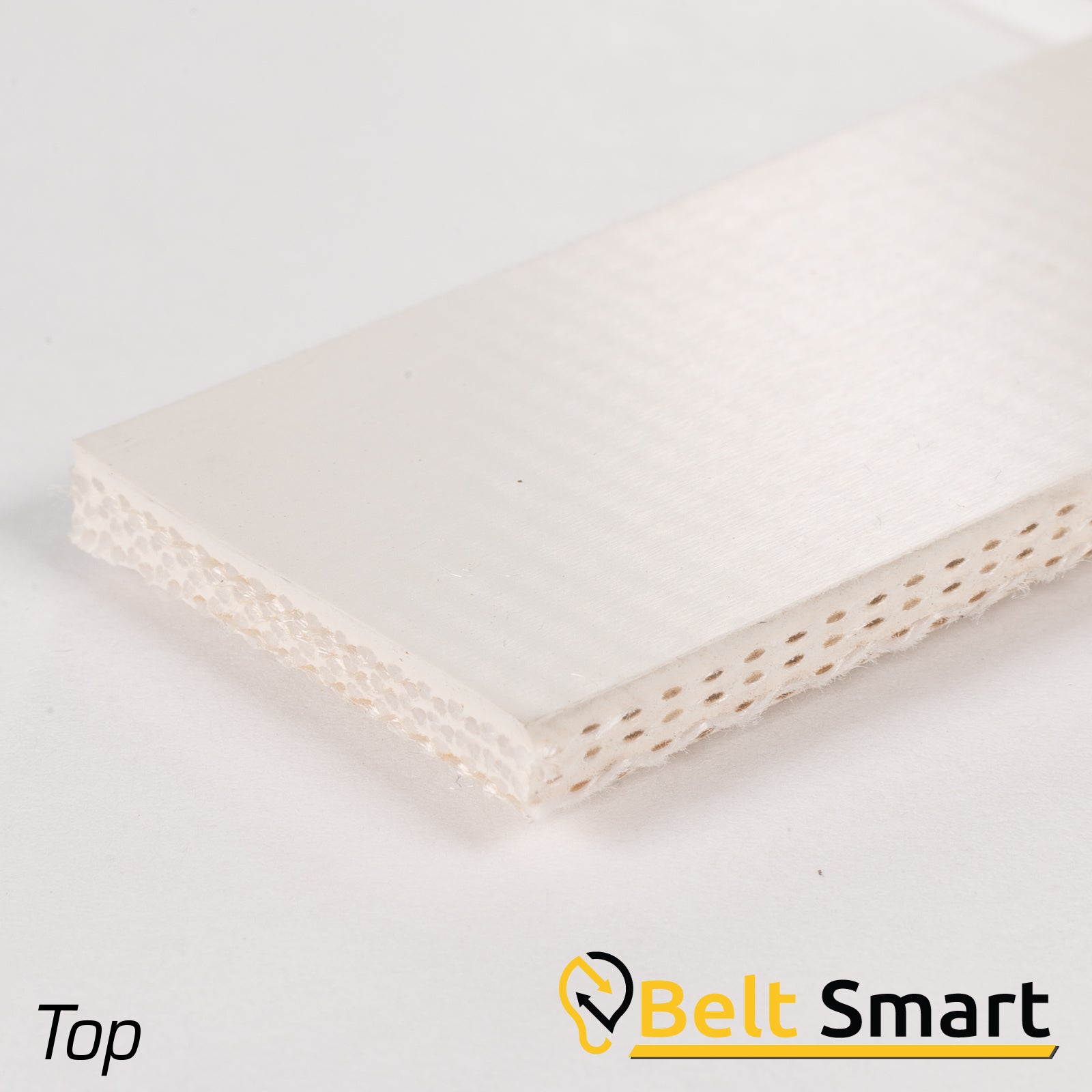

BS006 - #6 Beltservice 3 Ply Poly 90 White Nitrile COS Conveyor Belt
Beltservice

BS006 - #6 Beltservice 3 Ply Poly 90 White Nitrile COS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • General-purpose food handling
Features:
  • High-strength polyester carcass has great dimensional stability for less stretch and better tracking.
  • Mildew, rot, and deterioration resistant.
  • Thin and flexible for small pulleys.
  • Can be hot water and steam cleaned.
Specifications:
  • FDA accepted
2 Ply Poly 60
White Nitrile
COS
Pt No.: 5		 3 Ply Poly 90
White Nitrile
COS
Pt No.: 6
Thickness 5/64" 3/32"
Covers 1/32" x FS
Carcass 30 lbs. per Ply Polyester
Working Tension
per inch Width		 60 lbs. 90 lbs.
Approx. Weight
lbs per inch Width		 .044 lbs. .057 lbs.
Min. Pulley Diameter 1-1/2" 2"
Temperature Range 0 deg. F / 250 deg. F
Clipper Lace #1D #1A
Alligator Lace #1 #7
