6/3V700 by Bestorq | Wedge 6- Banded Wrapped V-Belt | 6/3V Section | 70" O.C.
Bestorq

6/3V700 by Bestorq | Wedge 6- Banded Wrapped V-Belt | 6/3V Section | 70" O.C.

Sale price$152.79
Quantity Price Each
50–99 $137.51
100+ $122.23
Discounts applied at checkout.
Wedge Banded Wrapped Belts - 6/3V Style V-Belts - 6-Banded

Product Data:

Series:
  • Wedge Banded Wrapped V-Belt
Band Count:

6

Belt Cross Section:

3V

Overview:
  • Banded, wrapped V-belts give premium belt performance, just as do their single belt counterparts. The belts are constructed of the same highly engineered, high performance components as single wrapped belts. The components are manufactured using the latest in belt technology available on a global basis.
  • The joined or banded belts are recommended for high shock load and pulsating drives where extra stability is beneficial.
Features:
  • The outer fabric wrap is treated with oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing.
  • The standard belts contain helically wound tensile cords that are specially engineered, twisted, heat and chemically set, polyester material. Lab tests have shown that the tensile decay properties of the cord are truly world class.
  • The body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords.
  • The Tie-Band backing joins the individual belts. It is made out of especially heavy duty, directionally woven fabric encapsulated in a tough rubber case to give excellent flexibility around the pulleys. In the transverse direction it offers an extremely strong tie bandacross the top of the belts, and very importantly the tie band has superb adhesion to each individual belts.
Specifications:
  • The belts meet USA RMA published ratings levels. All A, B, C, D, 3V, 5V and 8V belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set. (SPB, SPC, 9J, 15J and25J banded belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

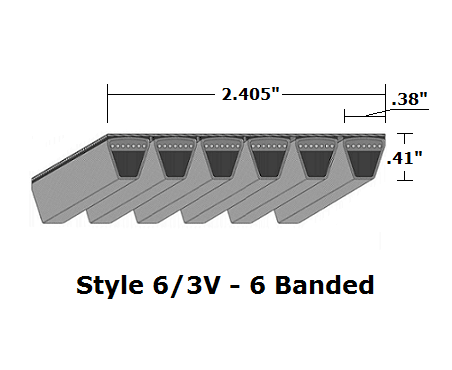

Part Number Top Band Width
(in.)		 Top Width Total
(in.)		 Thickness
(in.) 		Spacing
(in.) 		Angle Bands Outside Circumference (O.C.)
(in.)
6/3V500 .38" 2.405" .41" .41" 40 6 50"
6/3V530 .38" 2.405" .41" .41" 40 6 53"
6/3V560 .38" 2.405" .41" .41" 40 6 56"
6/3V600 .38" 2.405" .41" .41" 40 6 60"
6/3V630 .38" 2.405" .41" .41" 40 6 63"
6/3V670 .38" 2.405" .41" .41" 40 6 67"
6/3V700 .38" 2.405" .41" .41" 40 6 70"
6/3V710 .38" 2.405" .41" .41" 40 6 71"
6/3V750 .38" 2.405" .41" .41" 40 6 75"
6/3V800 .38" 2.405" .41" .41" 40 6 80"
6/3V850 .38" 2.405" .41" .41" 40 6 85"
6/3V900 .38" 2.405" .41" .41" 40 6 90"
6/3V950 .38" 2.405" .41" .41" 40 6 95"
6/3V1000 .38" 2.405" .41" .41" 40 6 100"
6/3V1060 .38" 2.405" .41" .41" 40 6 106"
6/3V1120 .38" 2.405" .41" .41" 40 6 112"
6/3V1180 .38" 2.405" .41" .41" 40 6 118"
6/3V1250 .38" 2.405" .41" .41" 40 6 125"
6/3V1320 .38" 2.405" .41" .41" 40 6 132"
6/3V1400 .38" 2.405" .41" .41" 40 6 140"
