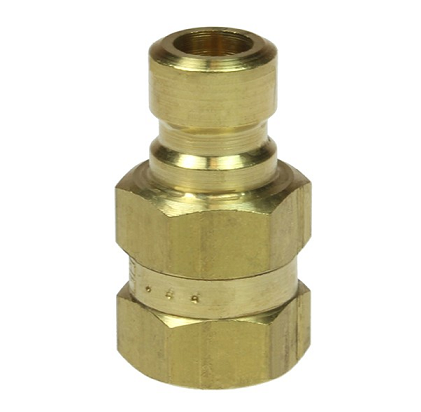

6-251F by Coilhose | Moldflow™ Series Pipe Connector | 1/4" Body Size | 1/8" Female NPT Thread | Straight | Brass

6-251F by Coilhose | Moldflow™ Series Pipe Connector | 1/4" Body Size | 1/8" Female NPT Thread | Straight | Brass

Sale price$10.89
Coilhose Pneumatics - Couplers & Connectors - Moldflow™ Series - Pipe Connectors
Buy More, Save More!
Quantity Price Each
10–39 $10.24
40–79 $9.26
80+ $8.17
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Mold-Flow
Shape:

Straight

Material(s):
  • Brass
Overview:
  • The Moldflow™ Series of couplers and connectors is designed primarily for use in cooling injection molds. They are available in valved or unvalved configurations. Engineered to interchange with other manufactures, these couplers and connectors are made from high quality brass with stainless steel balls, stainless steel valves and springs, and silicone seals. Valved couplers come with nickel-plated sleeve for easy identification.

Body Size: 1/4" & 3/8" Orientation: Straight
Locking Device: Non-Valved: 6 Stainless Balls
Valved: 7 Stainless Balls		 Internal Valve: Non-Valved: Brass
Valved: Brass
Body Material: Non-Valved: Brass
Valved: Brass		 Sleeve Material: Non-Valved: Brass
Valved: Nickel-Plated Brass
Maximum Input Pressure: Non-Valved: 250 PSI
Valved: 250 PSI		 Temperature Range: -50°F to 425°F
Seals: Non-Valved: Silicone
Valved: Silicone

Installation Dimensions for Pipe Connectors
A B C D
11/16" 11/16" 1" 5/8"
27/32" 15/16" 1-3/16" 7/8"
1" 15/16" 1-1/4" ---
1" 1-3/32" 17/16" 1-1/32"
1" 1-1/8" 1-7/16" 1-1/16"
1-3/16" 1-1/4" 1-9/16" 1-3/6"

Body Size Thread Size Female ThreadAll BrassModel Male ThreadAll BrassModel Male Valved ThreadAll BrassModel
1/4" 1/8"-27" NPT 6-251F - -
1/4" 1/4"-18" NPT 6-252F 6-252 6-252V
1/4" 3/8"-18" NPT 6-253F 6-253 -
3/8" 1/4"-18" NPT 6-352F 6-352 -
3/8" 3/8"-18" NPT 6-353F 6-353 6-353V
3/8" 1/2"-14" NPT 6-354F 6-354 -
