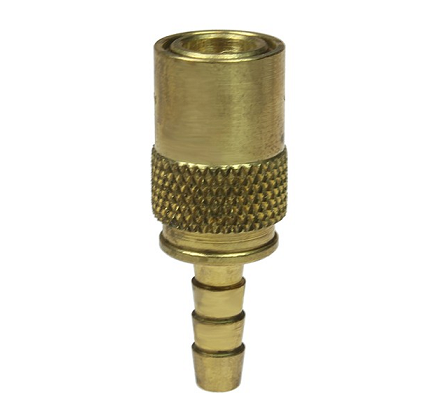

6-204 by Coilhose | Moldflow™ Series Hose Barb Coupler | Non-Valved | 1/4" Body Size | 1/4" Hose ID | Straight | Brass

6-204 by Coilhose | Moldflow™ Series Hose Barb Coupler | Non-Valved | 1/4" Body Size | 1/4" Hose ID | Straight | Brass

Sale price$16.70
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • The Moldflow™ Series of couplers and connectors is designed primarily for use in cooling injection molds. They are available in valved or unvalved configurations. Engineered to interchange with other manufactures, these couplers and connectors are made from high quality brass with stainless steel balls, stainless steel valves and springs, and silicone seals. Valved couplers come with nickel-plated sleeve for easy identification.
Note:
  • Valved couplers must be used with valved connectors for proper operation.
Body Size: 1/4" & 3/8" Orientation: Straight
Locking Device: Non-Valved: 6 Stainless Balls
Valved: 7 Stainless Balls		 Internal Valve: Non-Valved: Brass
Valved: Brass
Body Material: Non-Valved: Brass
Valved: Brass		 Sleeve Material: Non-Valved: Brass
Valved: Nickel-Plated Brass
Maximum Input Pressure: Non-Valved: 250 PSI
Valved: 250 PSI		 Temperature Range: -50°F to 425°F
Seals: Non-Valved: Silicone
Valved: Silicone

Body Size Hose ID Non-Valved
1/4" 1/4" 6-204
1/4" 5/16" 6-205
1/4" 3/8" 6-206
3/8" 3/8" 6-306
3/8" 1/2" 6-308
r

Additional Product Data:

Brand:
  • Mold-Flow
Shape:

Straight

Ends Configuration:
  • 1/4in Reusable Hose End
  • 1/4in Hose Barb

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
