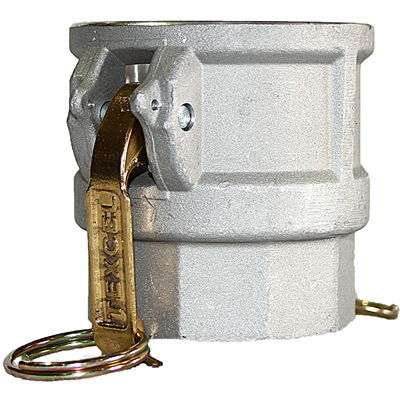

6.0-D-ALUM by Texcel | CAM & GROOVE COUPLING LINE | Type D | 6" Female Coupler x 6" Female NPT Thread | Aluminum
Texcel
CAM & GROOVE COUPLING LINE Series | Type D Coupler
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $66.66 |
| 40–79 | $60.27 |
| 80+ | $53.18 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
| Description | ||
|---|---|---|
| Aluminum constructed Cam and Groove Type D female coupler by female NPT. |
| Hose Diameter | Part Number | Lbs./Each |
|---|---|---|
| 3/4" | .75-D-ALUM | 0.26 lbs |
| 1" | 1.0-D-ALUM | 0.37 lbs |
| 1-1/4" | 1.25-D-ALUM | 0.77 lbs |
| 1-1/2" | 1.5-D-ALUM | 0.80 lbs |
| 2" | 2.0-D-ALUM | 0.88 lbs |
| 2-1/2" | 2.5-D-ALUM | 1.00 lbs |
| 3" | 3.0-D-ALUM | 1.75 lbs |
| 6" | 6.0-D-ALUM | 5.31 lbs |
| 8" | 8.0-D-ALUM | 11.00 lbs |
| 3/4" | .75-D-BRASS | 0.44 lbs |
| 1" | 1.0-D-BRASS | 0.68 lbs |
| 1-1/4" | 1.25-D-BRASS | 1.14 lbs |
| 1-1/2" | 1.5-D-BRASS | 1.32 lbs |
| 2" | 2.0-D-BRASS | 1.54 lbs |
| 2-1/2" | 2.5-D-BRASS | 1.98 lbs |
| 3" | 3.0-D-BRASS | 3.06 lbs |
| 4" | 4.0-D-BRASS | 4.96 lbs |
| 3/4" | .75-D-SS | 0.48 lbs |
| 1" | 1.0-D-SS | 0.81 lbs |
| 1-1/4" | 1.25-D-SS | 1.44 lbs |
| 1-1/2" | 1.5-D-SS | 1.50 lbs |
| 2" | 2.0-D-SS | 1.82 lbs |
| 2-1/2" | 2.5-D-SS | 2.54 lbs |
| 3" | 3.0-D-SS | 3.24 lbs |
| 4" | 4.0-D-SS | 5.18 lbs |
| 5" | 5.0-D-SS | 8.35 lbs |
| 6" | 6.0-D-SS | 8.42 lbs |
| 1" | 1.0-D-CS | N/A |
| 1-1/2" | 1.5-D-CS | N/A |
| 2" | 2.0-D-CS | N/A |
| 3" | 3.0-D-CS | N/A |
| 4" | 4.0-D-CS | N/A |
