5V1000 by Bestorq | Wedge Wrapped V-Belt | 5V Section | 100" O.C.

5V1000 by Bestorq | Wedge Wrapped V-Belt | 5V Section | 100" O.C.

Sale price$56.16
Wedge Wrapped Belts - 5V Style V-Belts
Buy More, Save More!
Quantity Price Each
10–39 $52.79
40–79 $47.74
80+ $42.12
Discounts applied in cart/checkout.

Product Data:

Series:
  • Wedge Wrapped V-Belt
Belt Cross Section:

5V

Belt Width:

5/8"
Overview:
  • Single, wrapped V-belts give premium belt performance. The belts are constructed of highly engineered, high performance components. The components are manufactured using the latest in belt technology available on a global basis.
Features:
  • All belts of a size are manufactured to run as a matched set, i.e. any 8V2000 belt will run as a matched set with any other 8V2000 belt.
  • The outer fabric wrap is treated with highly oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the cord are truly World Class.
  • The body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords.
Specifications:
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type. All 3L, A or 4L, B or 5L, C, D,3V, 5V and 8V belts are manufactured to meet RMA standards for length and dimensions. All belts of agiven size are manufactured to run interchangeably in a matched set. (SPZ, SPA, SPB, SPC, 9J, 15J, and25J belts are manufactured to fit ISO standard dimension multi-groove pulleys.)

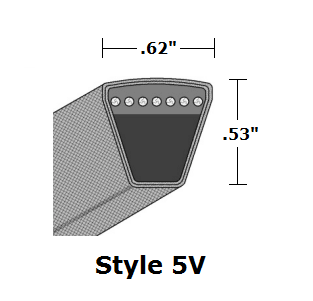

Part Number Top Width
(in.)		 Thickness
(in.) 		Angle Outside Circumference (O.C.)
(in.)
5V530 .62" .53" 40 53"
5V560 .62" .53" 40 56"
5V600 .62" .53" 40 60"
5V630 .62" .53" 40 63"
5V670 .62" .53" 40 67"
5V710 .62" .53" 40 71"
5V750 .62" .53" 40 75"
5V800 .62" .53" 40 80"
5V850 .62" .53" 40 85"
5V900 .62" .53" 40 90"
5V950 .62" .53" 40 95"
5V1000 .62" .53" 40 100"
5V1060 .62" .53" 40 106"
5V1120 .62" .53" 40 112"
5V1180 .62" .53" 40 118"
5V1230 .62" .53" 40 123"
5V1250 .62" .53" 40 125"
5V1320 .62" .53" 40 132"
5V1400 .62" .53" 40 140"
5V1500 .62" .53" 40 150"
5V1600 .62" .53" 40 160"
5V1700 .62" .53" 40 170"
5V1800 .62" .53" 40 180"
5V1900 .62" .53" 40 190"
5V2000 .62" .53" 40 200"
5V2120 .62" .53" 40 212"
5V2240 .62" .53" 40 224"
5V2360 .62" .53" 40 236"
5V2500 .62" .53" 40 250"
5V2650 .62" .53" 40 265"
5V2800 .62" .53" 40 280"
5V3000 .62" .53" 40 300"
5V3150 .62" .53" 40 315"
5V3350 .62" .53" 40 335"
5V3550 .62" .53" 40 355"

Bestorq

Bestorq provides energy saving and extreme long life power transmission belts. Bestorq has highest quality, best customer service, and best delivery. The Bestorq history is as a high quality manufacturer of power transmission belts in non-HVAC channels. This made it natural to expand this great success into the air handling marketplace. Bestorq offers great wages, great benefits and great opportunities, finding and retaining the highest quality employees.
