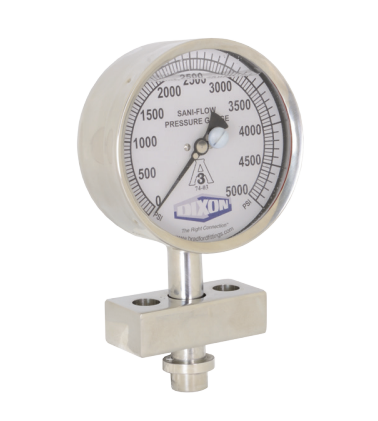

5H-VB-03-GF Dixon Valve 5" Sani-Flow Homogenizer Pressure Gauge - 0 to 5000 PSI (350 BAR) - 1-1/8" Thick 2 Bolt Flange - Glycerine Filled
Dixon

5H-VB-03-GF Dixon Valve 5" Sani-Flow Homogenizer Pressure Gauge - 0 to 5000 PSI (350 BAR) - 1-1/8" Thick 2 Bolt Flange - Glycerine Filled

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Size:
  • Dial Size: 5"
Material:
  • Product Contact: 316L Stainless Steel
  • Case: 304 Stainless Steel
  • Lens: Lexan®
Features:
  • Lexan® lens virtually impervious to cracks and breakage.
  • Unique pulsation dampening system insulates the gauge movement from the punishing pulsations of a homogenizer.
  • Glycerine fill standard.
  • Waterproof construction.
  • CIP-able.
  • True zero with re-zero standard.
Specifications:
  • Maximum Temperature: 250°F (121°C)
Part Number Dial Size Gauge Range Description
5H-VB-03-GF 5" 0 to 5000 PSI (350 BAR) 1-1/8" Thick 2 Bolt Flange - Glycerine Filled
5H-YB-03-GF 5" 0 to 7500 PSI (520 BAR) 1-1/8" Thick 2 Bolt Flange - Glycerine Filled

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
