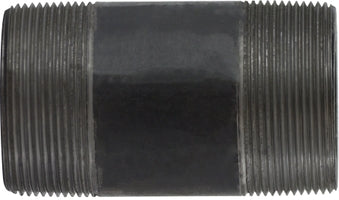

59163SMLSXX by Midland | Schedule XXS Extra Heavy Seamless Steel Pipe Nipple | 2" Diameter x 3-1/2" Length | Black Steel

59163SMLSXX by Midland | Schedule XXS Extra Heavy Seamless Steel Pipe Nipple | 2" Diameter x 3-1/2" Length | Black Steel

Sale price$66.88

Midland Industries
Schedule XXS Extra Heavy Seamless Steel Pipe Nipple - 2" Diameter - Black Steel
Buy More, Save More!
Quantity Price Each
10–39 $62.87
40–79 $56.85
80+ $50.16
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Male NPT
  • 2in Male NPT
  • Some Ends Match
Material(s):
  • Black Steel
Features:
  • Black steel protects against oxidation with the varnish coating.
  • Wall Thickness 0.436"
  • Grade B
  • Test Pressure 2500 PSI
  • Thread Length 1.06"
Cutting Procedure:
  • All pipe is roller cut. A visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut. This is done for every length of pipe. Pipe lengths are cut to a tolerance of + or - 1/16" of the actual length.
Threading Procedure:
  • All pipe is chaser thread cut to American Standard Tapered Pipe Thread standards. This is 3/4" taper per foot. Pipe is visually inspected for roundness of threads and other visual faults as it is removed from the threading machine.
Specifications:
  • ASTM A106 Grade B Seamless Pipe
  • ASTM A 53
  • WWN 351
  • Standard NPT Tapered Pipe Threads as per ANSI B 1.20.1 Specification
Part Number Length Approx. Weight
(Lbs.)
59160SMLSXX
(59-160SMLSXX)		 Close 1.36
59161SMLSXX
(59-161SMLSXX)		 2-1/2" 1.67
59162SMLSXX
(59-162SMLSXX)		 3" 2.09
59163SMLSXX
(59-163SMLSXX)		 3-1/2" 2.51
59164SMLSXX
(59-164SMLSXX)		 4" 2.86
59166SMLSXX
(59-166SMLSXX)		 5" 3.04
59168SMLSXX
(59-168SMLSXX)		 6" 3.20
59169SMLSXX
(59-169SMLSXX)		 7" 4.35
59170SMLSXX
(59-170SMLSXX)		 8" 5.86
59171SMLSXX
(59-171SMLSXX)		 9" 6.58
59172SMLSXX
(59-172SMLSXX)		 10" 7.31
59174SMLSXX
(59-174SMLSXX)		 12" 9.34
59179SMLSXX
(59-179SMLSXX)		 24" 14.77

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
