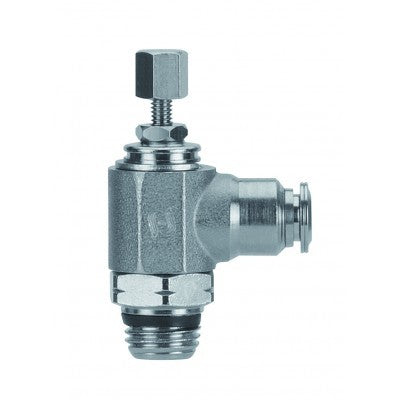

57915-10-1/4 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 12mm Tube x 3/8" Swift-Fit Male | Metal Release Collet | Flow In Knob Adjustment
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Metric Tube Flow Control (IN)
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
| Product Number | Tube | A | B | D | L1 | L2 Min | L2 Max | CH |
|---|---|---|---|---|---|---|---|---|
| 57915-4-M5 | 4 mm | M5 | 4 mm | 10 mm | 19 mm | 39.5 mm | 43.5 mm | 8 mm |
| 57915-4-1/8 | 4 mm | 1/8" | 5.5 mm | 10 mm | 21 mm | 44 mm | 49 mm | 14 mm |
| 57915-5-M5 | 5 mm | M5 | 4 mm | 12.5 mm | 20 mm | 39.5 mm | 43.5 mm | 8 mm |
| 57915-5-1/8 | 5 mm | 1/8" | 5.5 mm | 12.5 mm | 21.5 mm | 44 mm | 49 mm | 14 mm |
| 57915-5-1/4 | 5 mm | 1/4" | 7 mm | 12.5 mm | 24.5 mm | 48.5 mm | 55 mm | 17 mm |
| 57915-6-M5 | 6 mm | M5 | 4 mm | 12.5 mm | 20.5 mm | 39.5 mm | 43.5 mm | 8 mm |
| 57915-6-1/8 | 6 mm | 1/8" | 5.5 mm | 12.5 mm | 22.5 mm | 44 mm | 49 mm | 14 mm |
| 57915-6-1/4 | 6 mm | 1/4" | 7 mm | 12.5 mm | 25 mm | 48.5 mm | 55 mm | 17 mm |
| 57915-8-1/8 | 8 mm | 1/8" | 5.5 mm | 14 mm | 24 mm | 44 mm | 49 mm | 14 mm |
| 57915-8-1/4 | 8 mm | 1/4" | 7 mm | 14 mm | 26 mm | 48.5 mm | 55 mm | 17 mm |
| 57915-8-3/8 | 8 mm | 3/8" | 7.5 mm | 14 mm | 28.5 mm | 56 mm | 65 mm | 20 mm |
| 57915-10-1/4 | 10 mm | 1/4" | 7 mm | 17 mm | 28.5 mm | 48.5 mm | 55 mm | 17 mm |
| 57915-10-3/8 | 10 mm | 3/8" | 7.5 mm | 17 mm | 30.5 mm | 56 mm | 65 mm | 20 mm |
| 57915-12-3/8 | 12 mm | 3/8" | 7.5 mm | 21.5 mm | 32.5 mm | 56 mm | 65 mm | 20 mm |
| 57915-12-1/2 | 12 mm | 1/2" | 9 mm | 21.5 mm | 35 mm | 62 mm | 69 mm | 24 mm |
| 57915-14-1/2 | 14 mm | 1/2" | 9 mm | 21.5 mm | 35.5 mm | 62 mm | 69 mm | 24 mm |
