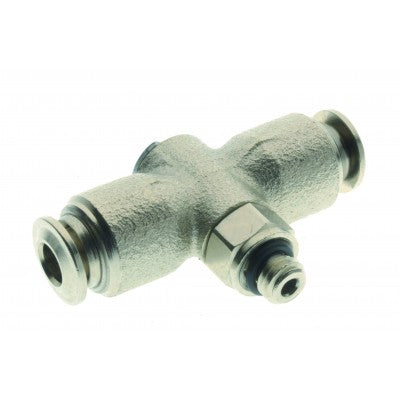

57560-5-1/8 by AIGNEP | Banjo Series | Double Banjo Body | 5mm x 1/8" BSPP | Nickel Plated Brass | Pack of 10
57560-5-1/8 by AIGNEP | Banjo Series | Double Banjo Body | 5mm x 1/8" BSPP | Nickel Plated Brass | Pack of 10

57560-5-1/8 by AIGNEP | Banjo Series | Double Banjo Body | 5mm x 1/8" BSPP | Nickel Plated Brass | Pack of 10

Sale price$79.59

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
5–19 $74.81
20–59 $67.65
60+ $59.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • Banjo Series
Shape:

Tee

Ends Configuration:
  • 5mm Push-to-Connect
  • 1/8in Male BSPP
  • 5mm Push-to-Connect
  • Some Ends Match

Double Banjo Body Nickel Plated Brass

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

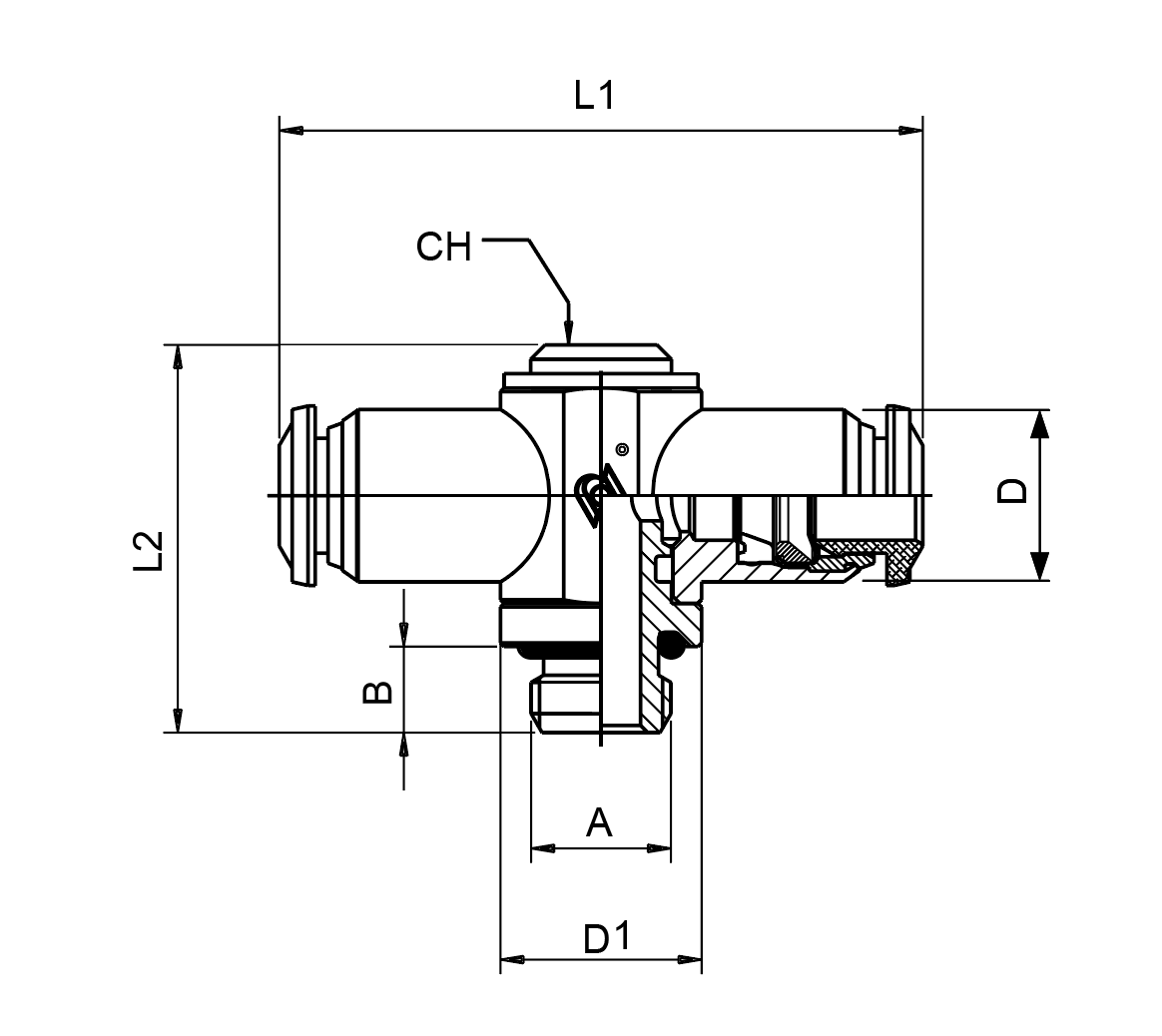

Product Number Tube A B L1 L2 CH D1 D
57560-4-1/8 4 mm 1/8" 6 mm 42 mm 27 mm 10 mm 14 mm 5 mm
57560-5-1/8 5 mm 1/8" 6 mm 43 mm 27 mm 12.5 mm 14 mm 5 mm
57560-5-1/4 5 mm 1/4" 8 mm 49 mm 31 mm 12.5 mm 18 mm 6 mm
57560-6-1/8 6 mm 1/8" 6 mm 45 mm 27 mm 12.5 mm 14 mm 5 mm
57560-6-1/4 6 mm 1/4" 8 mm 50 mm 31 mm 12.5 mm 18 mm 6 mm
57560-8-1/8 8 mm 1/8" 6 mm 48 mm 27 mm 14 mm 14 mm 5 mm
57560-8-1/4 8 mm 1/4" 8 mm 52 mm 31 mm 14 mm 18 mm 6 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
