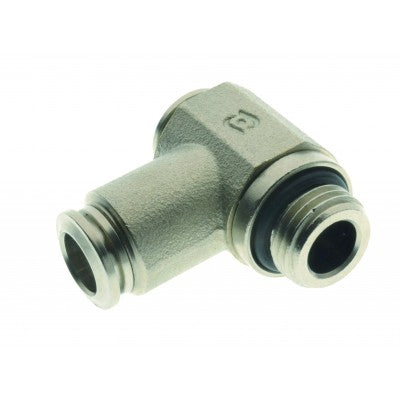

57550-10-1/4 by AIGNEP | Banjo Series | Swivel Banjo Assembly | 10mm Tube x Male 1/4" BSPP | Nickel Plated Brass | Pack of 10
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Single Banjo Body Nickel Plated Brass
Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: BSPP
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: BSPP

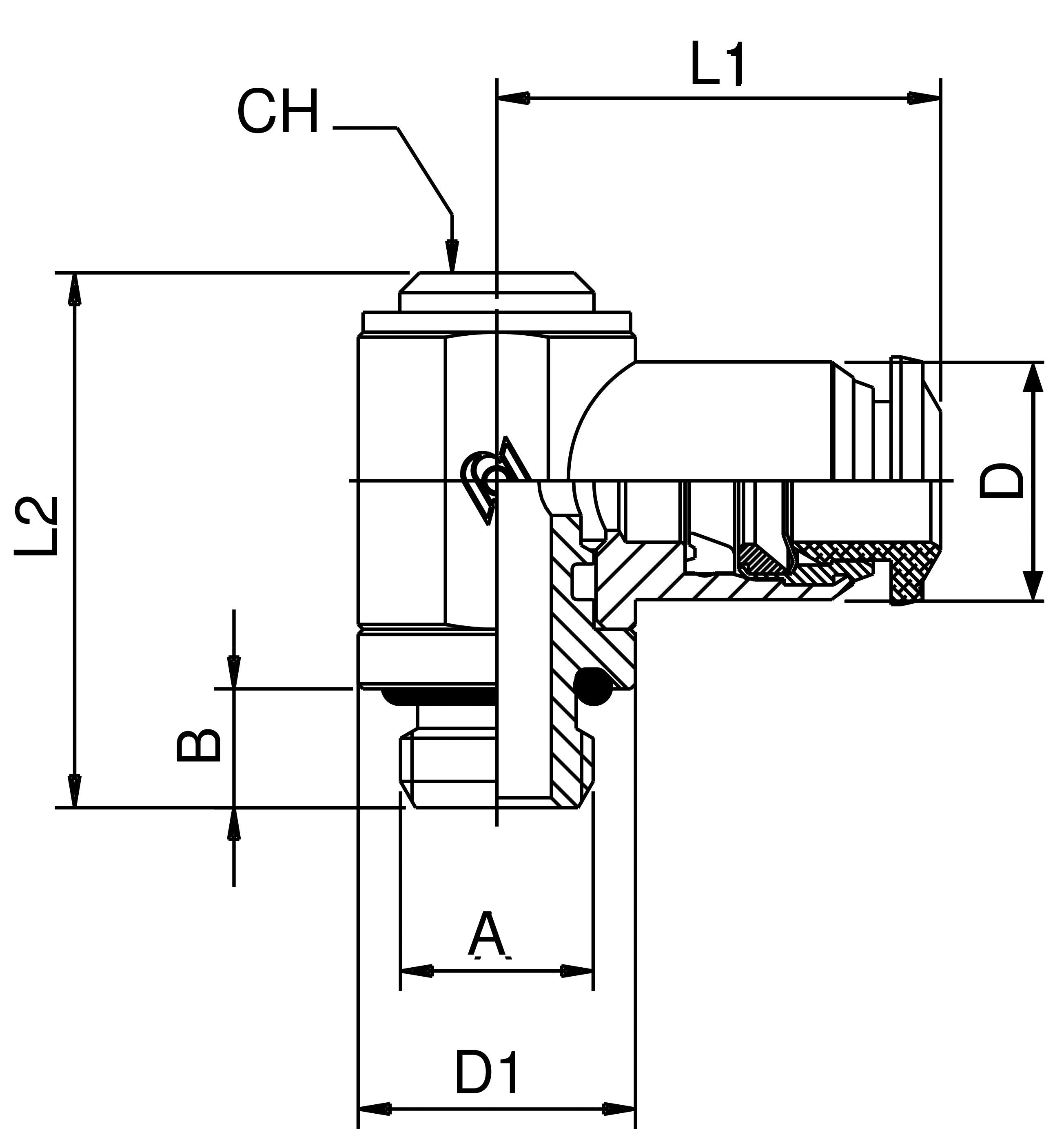

| Product Number | Tube | A | B | L1 | L2 | CH | D1 | D | |
|---|---|---|---|---|---|---|---|---|---|
| 57550-4-M5 | 4 mm | M5 | 5 mm | 19 mm | 24.5 mm | - | 9 mm | 10 mm | |
| 57550-4-1/8 | 4 mm | 1/8" | 6 mm | 21 mm | 28 mm | 5 mm | 14 mm | 10 mm | |
| 57550-5-M5 | 5 mm | M5 | 5 mm | 20 mm | 24.5 mm | - | 9 mm | 12.5 mm | |
| 57550-5-1/8 | 5 mm | 1/8" | 6 mm | 21.5 mm | 28 mm | 5 mm | 14 mm | 12.5 mm | |
| 57550-5-1/4 | 5 mm | 1/4" | 8 mm | 24.5 mm | 31 mm | 6 mm | 18 mm | 12.5 mm | |
| 57550-6-M5 | 6 mm | M5 | 5 mm | 20.5 mm | 24.5 mm | - | 9 mm | 12.5 mm | |
| 57550-6-1/8 | 6 mm | 1/8" | 6 mm | 22.5 mm | 28 mm | 5 mm | 14 mm | 12.5 mm | |
| 57550-6-1/4 | 6 mm | 1/4" | 8 mm | 25 mm | 31 mm | 6 mm | 18 mm | 12.5 mm | |
| 57550-8-1/8 | 8 mm | 1/8" | 6 mm | 24 mm | 28 mm | 5 mm | 14 mm | 14 mm | |
| 57550-8-1/4 | 8 mm | 1/4" | 8 mm | 26 mm | 31 mm | 6 mm | 18 mm | 14 mm | |
| 57550-8-3/8 | 8 mm | 3/8" | 9 mm | 28 mm | 35.5 mm | 7 mm | 21 mm | 14 mm | |
| 57550-10-1/4 | 10 mm | 1/4" | 8 mm | 29 mm | 31 mm | 6 mm | 18 mm | 17 mm | |
| 57550-10-3/8 | 10 mm | 3/8" | 9 mm | 30.5 mm | 35.5 mm | 7 mm | 21 mm | 17 mm | |
| 57550-12-3/8 | 12 mm | 3/8" | 9 mm | 32.5 mm | 35.5 mm | 7 mm | 21 mm | 21.5 mm |
