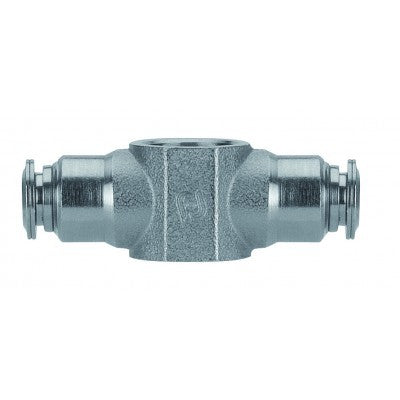

57510-4-M5 by AIGNEP | 57 Series | Double Banjo Body Metric | 4mm Tube x M5 Stem | Pack of 10
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Double Banjo Body Metallic Metric
Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

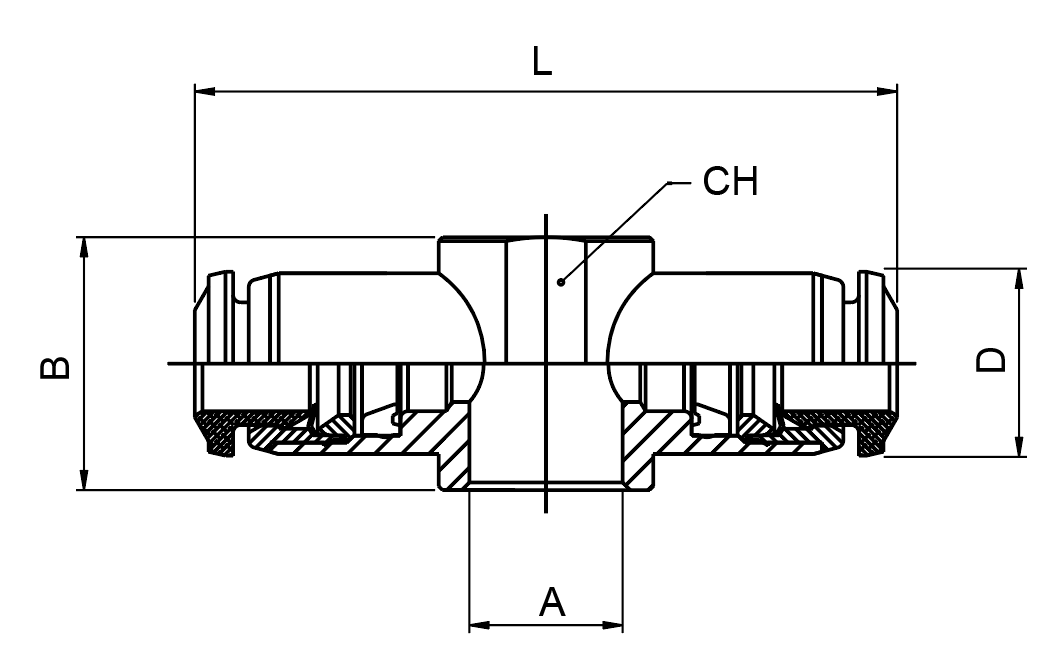

| Product Number | Tube | A | B | L | CH | D |
|---|---|---|---|---|---|---|
| 57510-4-M5 | 4 mm | M5 | 12.5 mm | 38 mm | - | 10 mm |
| 57510-4-M6 | 4 mm | M6 | 12.5 mm | 38 mm | - | 10 mm |
| 57510-4-1/8 | 4 mm | 1/8" | 15 mm | 42 mm | 14 mm | 10 mm |
| 57510-5-1/8 | 5 mm | 1/8" | 15 mm | 43 mm | 14 mm | 12.5 mm |
| 57510-5-1/4 | 5 mm | 1/4" | 17 mm | 49 mm | 18 mm | 12.5 mm |
| 57510-6-1/8 | 6 mm | 1/8" | 15 mm | 44 mm | 14 mm | 12.5 mm |
| 57510-6-1/4 | 6 mm | 1/4" | 17 mm | 50 mm | 18 mm | 12.5 mm |
| 57510-8-1/8 | 8 mm | 1/8" | 15 mm | 48 mm | 14 mm | 14 mm |
| 57510-8-1/4 | 8 mm | 1/4" | 17 mm | 52 mm | 18 mm | 14 mm |
