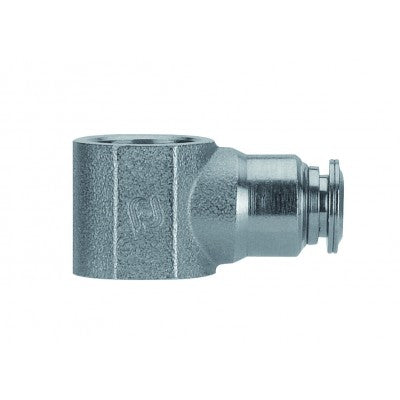

57500-5-M6 by AIGNEP | 57 Series | Single Banjo Body Metric | 5mm Tube x M6 Stem | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.79 |
| 40–79 | $34.17 |
| 80+ | $30.15 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Banjo
Material(s):
Single Banjo Body Metallic Metric
Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

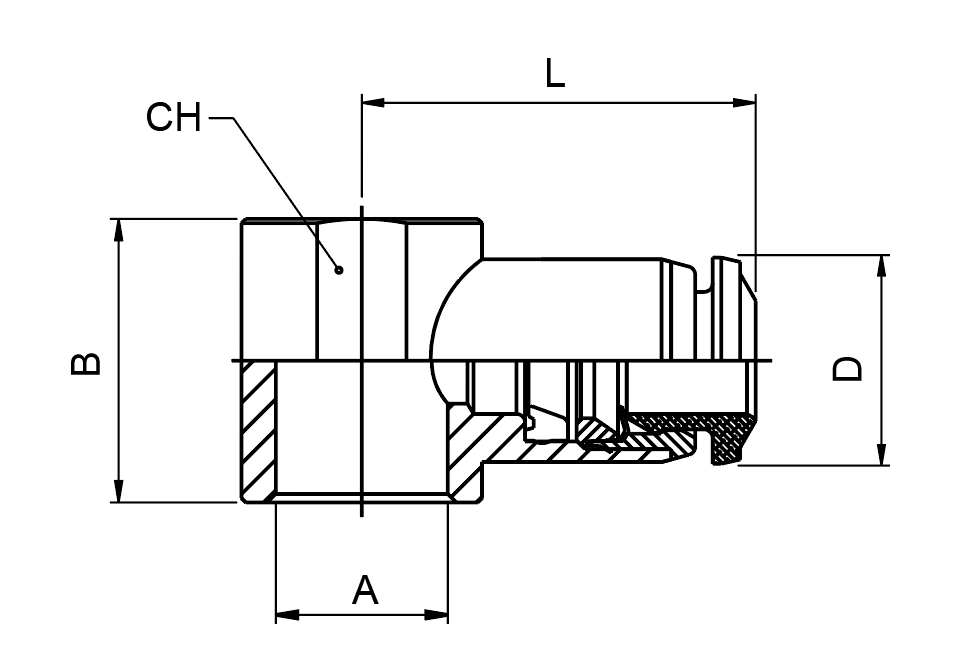

| Product Number | Tube | A | B (IN) | B | L | CH | D |
|---|---|---|---|---|---|---|---|
| 57500-4-M6 | 4 mm | M6 | 0.492" | 12.5 mm | 19 mm | - | 10 mm |
| 57500-4-1/8 | 4 mm | 1/8" | 0.590" | 15 mm | 21 mm | 14 mm | 10 mm |
| 57500-5-M6 | 5 mm | M6 | 0.492" | 12.5 mm | 20 mm | - | 12.5 mm |
| 57500-5-1/8 | 5 mm | 1/8" | 0.590" | 15 mm | 21.5 mm | 14 mm | 12.5 mm |
| 57500-5-1/4 | 5 mm | 1/4" | 0.669" | 17 mm | 24.5 mm | 18 mm | 12.5 mm |
| 57500-6-M5 | 6 mm | M5 | 0.492" | 12.5 mm | 20.5 mm | - | 12.5 mm |
| 57500-6-M6 | 6 mm | M6 | 0.492" | 12.5 mm | 20.5 mm | - | 12.5 mm |
| 57500-6-1/8 | 6 mm | 1/8" | 0.590" | 15 mm | 22 mm | 14 mm | 12.5 mm |
| 57500-6-1/4 | 6 mm | 1/4" | 0.669" | 17 mm | 25 mm | 18 mm | 12.5 mm |
| 57500-8-1/8 | 8 mm | 1/8" | 0.590" | 15 mm | 24 mm | 14 mm | 14 mm |
| 57500-8-1/4 | 8 mm | 1/4" | 0.669" | 17 mm | 26 mm | 18 mm | 14 mm |
| 57500-8-3/8 | 8 mm | 3/8" | 0.787" | 20 mm | 28 mm | 21 mm | 14 mm |
| 57500-10-1/4 | 10 mm | 1/4" | 0.669" | 17 mm | 29 mm | 18 mm | 17 mm |
| 57500-10-3/8 | 10 mm | 3/8" | 0.787" | 20 mm | 30.5 mm | 21 mm | 17 mm |
| 57500-12-3/8 | 12 mm | 3/8" | 0.787" | 20 mm | 32.5 mm | 21 mm | 21.5 mm |
| 57500-12-1/2 | 12 mm | 1/2" | 0.944" | 24 mm | 35 mm | 25 mm | 21.5 mm |
| 57500-14-1/2 | 14 mm | 1/2" | 0.944" | 24 mm | 35.5 mm | 25 mm | 21.5 mm |
