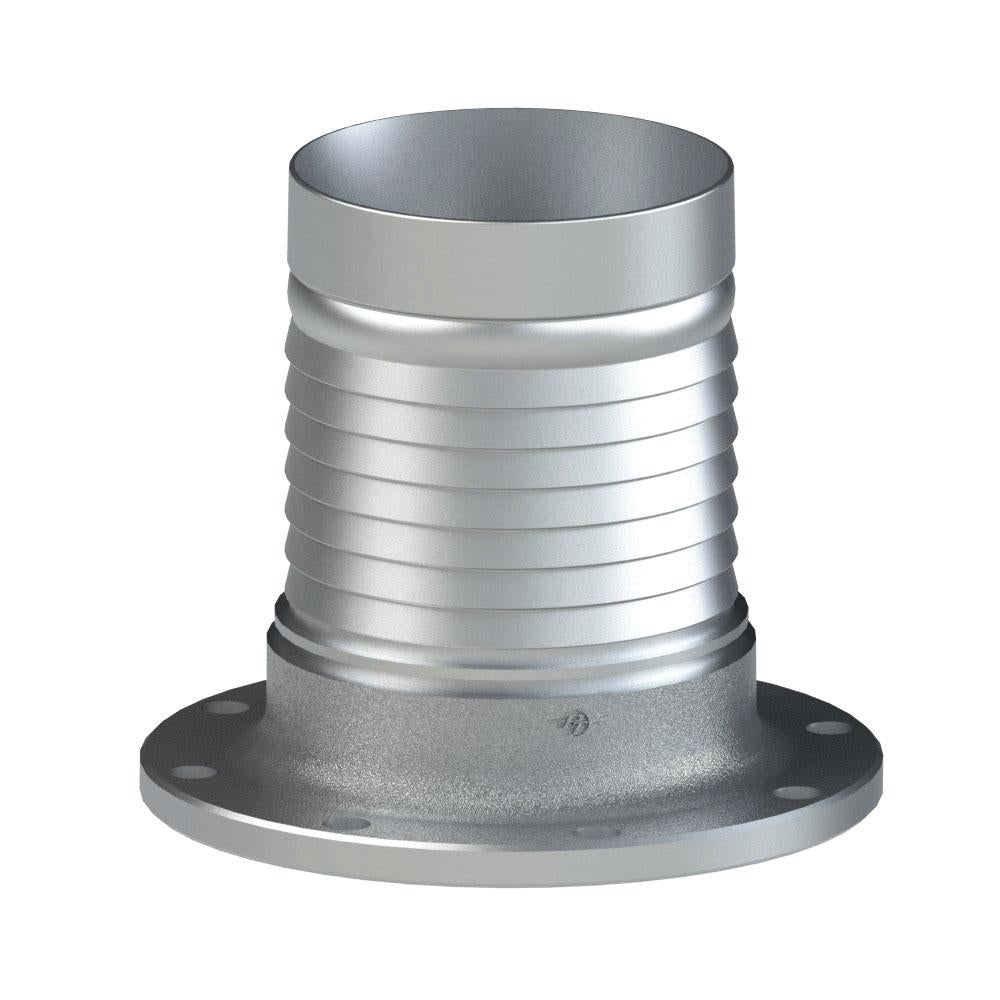

5744003 (40TTFC50AL) PROGRIP™ by PT-Coupling | Type TTFC50 | C50 External Crimp Fitting | 4" Fixed TTMA Flange x 4" Crimp Hose Shank | Aluminum

5744003 (40TTFC50AL) PROGRIP™ by PT-Coupling | Type TTFC50 | C50 External Crimp Fitting | 4" Fixed TTMA Flange x 4" Crimp Hose Shank | Aluminum

Sale price$137.99

PT Coupling
PROGRIP™ | C50 External Crimp System | Type TTFC50 | Fixed TTMA Flange x Crimp Hose Shank | Aluminum

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–19 $129.71
20–59 $117.29
60+ $103.49
Discounts applied in cart/checkout.

Product Data:

Series:
  • ProGrip C50 External Crimp System
Shape:

Straight

Ends Configuration:
  • 4in TTMA Flange
  • 4in Hose Barb
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Aluminum:
    • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
    • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Size
30TTFC50AL 5744004 3"
40TTFC50AL 5744003 4"

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
