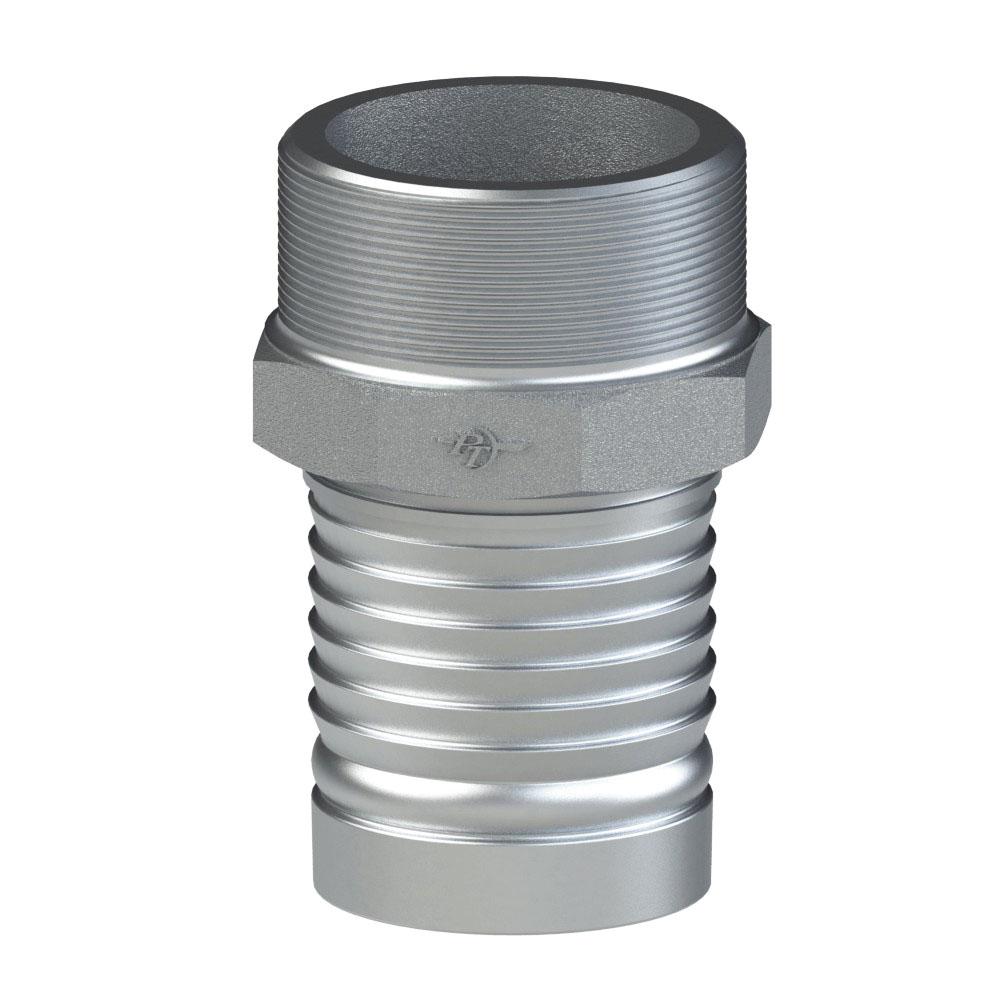

5743002 (30TMC50AL) PROGRIP™ by PT-Coupling | Type TMC50AL | C50 External Crimp Fitting | with Octagon | 3" Male NPT x 3" Hose Shank | Cast Aluminum
PT Coupling
PROGRIP™ | C50 External Crimp System | Type TMC50AL | Male NPT x Hose Shank | Casting with Octagon | Aluminum
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $53.41 |
| 40–79 | $48.30 |
| 80+ | $42.62 |
Product Data:
Straight
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
| Part Name |
Item # | Size | Max. Allowable Working Press. (PSI)* |
|---|---|---|---|
| 15TMC50AL | 5741502 | 1-1/2" | 600 PSI |
| 20TMC50AL | 5742002 | 2" | 600 PSI |
| 30TMC50AL | 5743002 | 3" | 600 PSI |
| 40TMC50AL | 5744002 | 4" | 500 PSI |
*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.
It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
