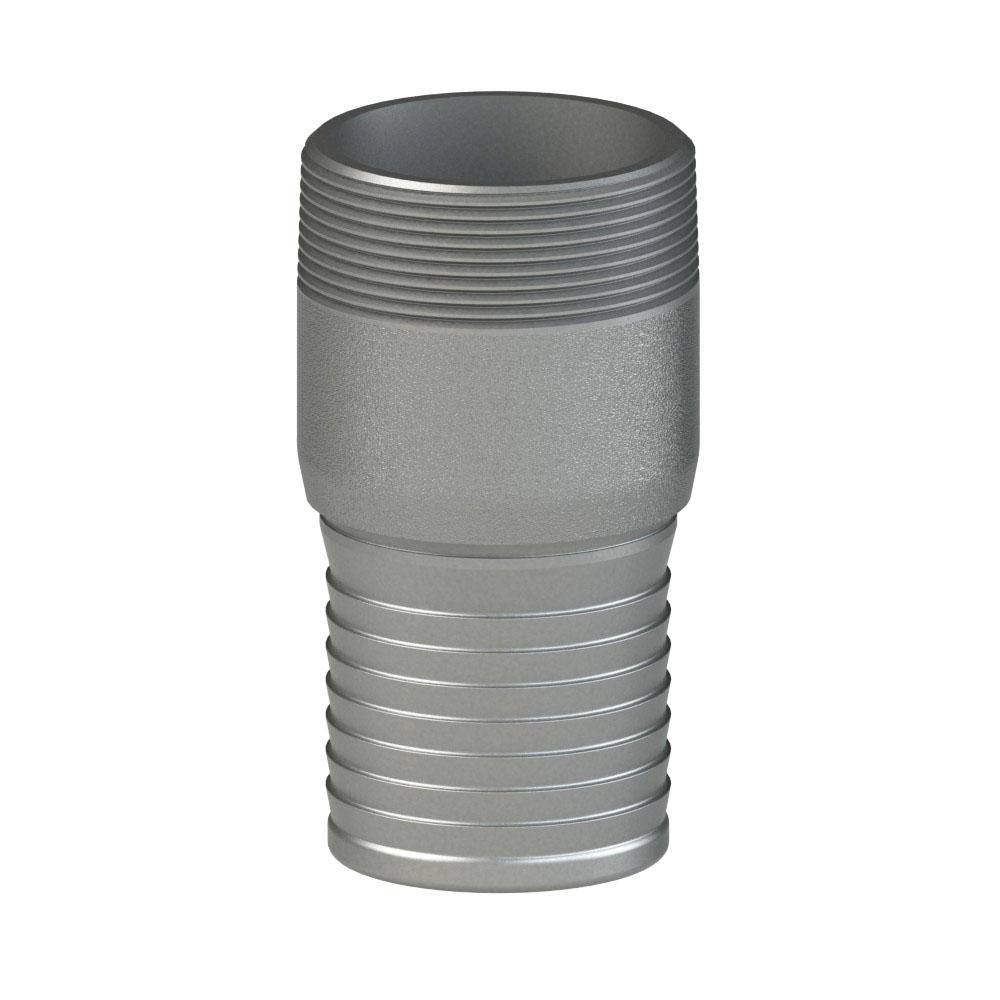

5723002 (30TMPMCS) PROGRIP™ by PT-Coupling | Type TMPM | PM Internal Expansion Fitting | 3" Male NPT x 3" Hose Shank | Plated Carbon Steel

5723002 (30TMPMCS) PROGRIP™ by PT-Coupling | Type TMPM | PM Internal Expansion Fitting | 3" Male NPT x 3" Hose Shank | Plated Carbon Steel

Sale price$88.51

PT Coupling
PROGRIP™ | PM Internal Expansion System - Industrial | Type TMPM | Male NPT x Hose Shank | Plated Carbon Steel

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–19 $83.20
20–59 $75.23
60+ $66.38
Discounts applied in cart/checkout.

Product Data:

Series:
  • ProGrip PM Internal Expansion System
Shape:

Straight

Ends Configuration:
  • 3in Male NPT
  • 3in Hose Barb
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • The bodies are to be assembled or installed using an Internal Expansion Pull Mandrel (PM) system.
  • Made in the USA
Part
Name		 Item # Size Max. Allowable
Working Press.
(PSI)
15TMPMCS 5721502 1-1/2" 600 PSI
25TMPMCS 5722502 2-1/2" 600 PSI
30TMPMCS 5723002 3" 600 PSI

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
