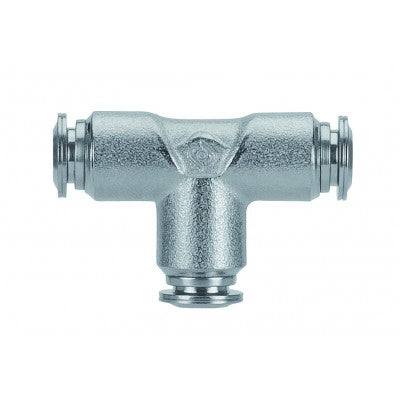

57230-5 by AIGNEP | 57 Series | Union Composite Metal Release Collet | 5mm Tube | Tee | Pack of 10
57230-5 by AIGNEP | 57 Series | Union Composite Metal Release Collet | 5mm Tube | Tee | Pack of 10

57230-5 by AIGNEP | 57 Series | Union Composite Metal Release Collet | 5mm Tube | Tee | Pack of 10

Sale price$56.96

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $53.54
40–79 $48.42
80+ $42.72
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Tee

Ends Configuration:
  • 5mm Push-to-Connect
  • 5mm Push-to-Connect
  • 5mm Push-to-Connect
  • Some Ends Match

Union Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

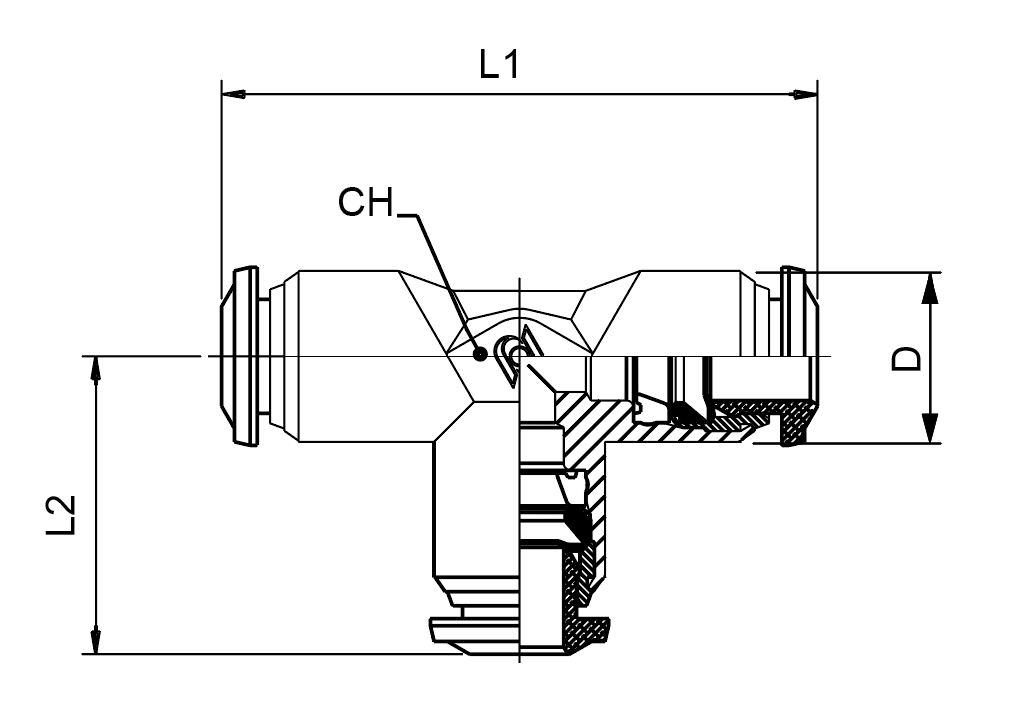

Product Number Tube L1 L2 CH D
57230-5 5 mm 40 mm 20 mm 11 mm 12.5 mm
57230-6 6 mm 42 mm 21 mm 11 mm 12.5 mm
57230-10 10 mm 53 mm 26.5 mm 16 mm 17 mm
57230-12 12 mm 61 mm 30.5 mm 19 mm 21.5 mm
57230-14 14 mm 65.5 mm 32.5 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
