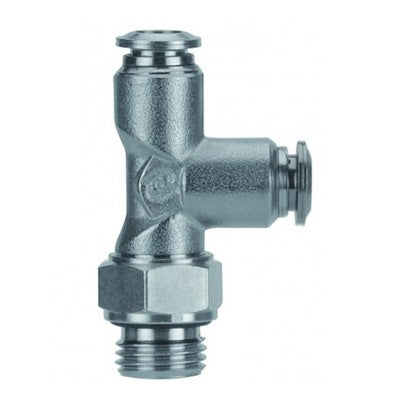

57225-6-M5 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 6mm Tube x Male M5 | Tee | Pack of 10
57225-6-M5 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 6mm Tube x Male M5 | Tee | Pack of 10

57225-6-M5 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 6mm Tube x Male M5 | Tee | Pack of 10

Sale price$54.00

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $50.76
40–79 $45.90
80+ $40.50
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Tee

Material(s):
  • Nickel-Plated Brass

Swivel Run Tee Metallic - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

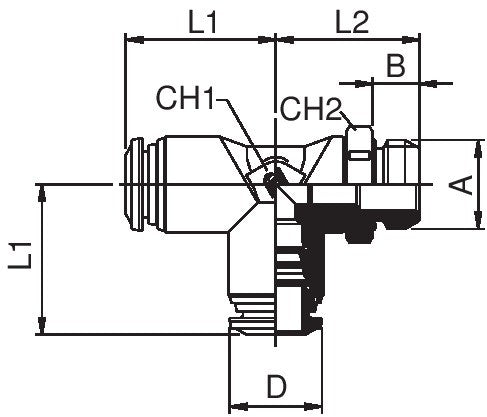

Product Number Tube A B L1 L2 CH1 CH2 D
57225-6-M5 6 mm M5 3.5 mm 21 mm 20.5 mm 11 mm 11 mm 12.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
