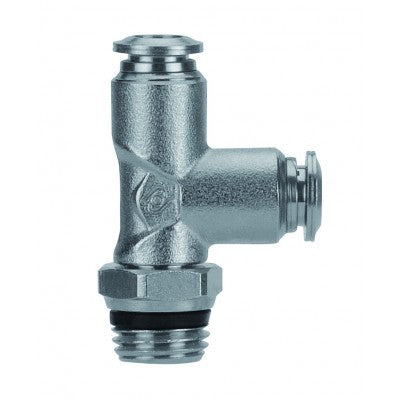

57222-6-1/4 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 6mm Tube x 1/4" Swift-Fit Male Universal Thread | Tee | Pack of 10
57222-6-1/4 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 6mm Tube x 1/4" Swift-Fit Male Universal Thread | Tee | Pack of 10

57222-6-1/4 by AIGNEP | 57 Series | Swivel Run Metal Release Collet | 6mm Tube x 1/4" Swift-Fit Male Universal Thread | Tee | Pack of 10

Sale price$51.71

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $48.61
40–79 $43.95
80+ $38.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Tee

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/4in Male Swift-Fit
  • 6mm Push-to-Connect
  • Some Ends Match

Swivel Run Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L1 L2 CH1 CH2 D
57222-6-1/8 6 mm 1/8'' 0.216" 5.5 mm 21 mm 22 mm 11 mm 13 mm 12.5 mm
57222-6-1/4 6 mm 1/4'' 0.275" 7 mm 21 mm 23.5 mm 11 mm 15 mm 12.5 mm
57222-10-1/4 10 mm 1/4'' 0.275" 7 mm 26.5 mm 26 mm 14 mm 16 mm 17.5 mm
57222-10-3/8 10 mm 3/8'' 0.295" 7.5 mm 26.5 mm 26 mm 14 mm 17 mm 17.5 mm
57222-10-1/2 10 mm 1/2'' 0.354" 9 mm 26.5 mm 28.5 mm 14 mm 21 mm 17.5 mm
57222-12-3/8 12 mm 3/8'' 0.295" 7.5 mm 31.5 mm 29.5 mm 16 mm 20 mm 21.5 mm
57222-12-1/2 12 mm 1/2'' 0.354" 9 mm 31.5 mm 32 mm 16 mm 21 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
