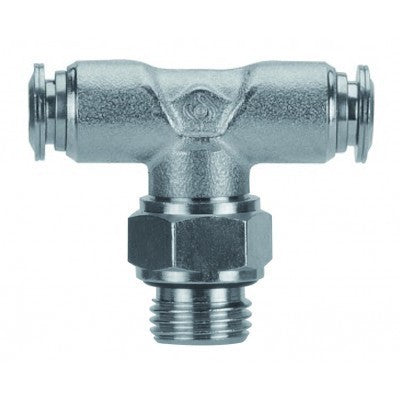

57215-8-1/8 by AIGNEP | 57 Series | Swivel Male Metal Release Collet Branch | 8mm Tube x 1/8" Male BSPP | Tee | Pack of 10
57215-8-1/8 by AIGNEP | 57 Series | Swivel Male Metal Release Collet Branch | 8mm Tube x 1/8" Male BSPP | Tee | Pack of 10

57215-8-1/8 by AIGNEP | 57 Series | Swivel Male Metal Release Collet Branch | 8mm Tube x 1/8" Male BSPP | Tee | Pack of 10

Sale price$55.77

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $52.42
40–79 $47.40
80+ $41.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Tee

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/8in Male BSPP
  • 8mm Push-to-Connect
  • Some Ends Match

Swivel Branch Tee Metallic - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR

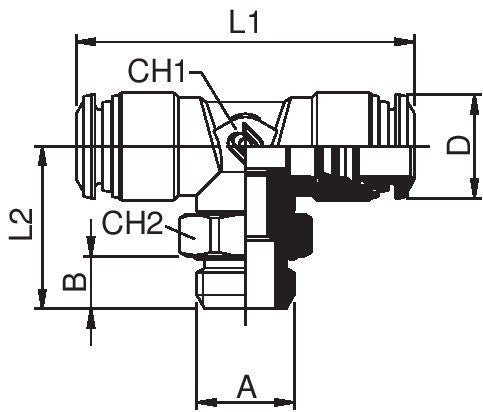

Product Number Tube A B L1 L2 CH1 CH2 D
57215-4-M5 4 mm M5 3.5 mm 34 mm 18 mm 9 mm 8 mm 10 mm
57215-4-1/8 4 mm 1/8'' 5.5 mm 34 mm 18.5 mm 9 mm 13 mm 10 mm
57215-4-1/4 4 mm 1/4'' 7 mm 34 mm 20 mm 9 mm 16 mm 10 mm
57215-5-M5 5 mm M5 3.5 mm 40 mm 20.5 mm 11 mm 11 mm 12.5 mm
57215-5-1/8 5 mm 1/8'' 5.5 mm 40 mm 20.5 mm 11 mm 13 mm 12.5 mm
57215-6-M5 6 mm M5 3.5 mm 42 mm 20.5 mm 11 mm 11 mm 12.5 mm
57215-6-1/8 6 mm 1/8'' 5.5 mm 42 mm 20.5 mm 11 mm 13 mm 12.5 mm
57215-6-1/4 6 mm 1/4'' 7 mm 42 mm 22 mm 11 mm 16 mm 12.5 mm
57215-8-1/8 8 mm 1/8'' 5.5 mm 45 mm 23.5 mm 13 mm 13 mm 14.5 mm
57215-8-1/4 8 mm 1/4'' 7 mm 45 mm 24 mm 13 mm 16 mm 14.5 mm
57215-8-3/8 8 mm 3/8'' 8 mm 45 mm 26 mm 13 mm 20 mm 14.5 mm
57215-8-1/2 8 mm 1/2'' 9.5 mm 45 mm 27.5 mm 13 mm 25 mm 14.5 mm
57215-10-1/4 10 mm 1/4'' 7 mm 53 mm 27.5 mm 14 mm 16 mm 17.5 mm
57215-10-3/8 10 mm 3/8'' 8 mm 53 mm 27 mm 14 mm 20 mm 17.5 mm
57215-10-1/2 10 mm 1/2'' 9.5 mm 53 mm 28.5 mm 14 mm 25 mm 17.5 mm
57215-12-3/8 12 mm 3/8'' 8 mm 62.5 mm 29.5 mm 16 mm 20 mm 21.5 mm
57215-12-1/2 12 mm 1/2'' 9.5 mm 62.5 mm 31 mm 16 mm 25 mm 21.5 mm
57215-14-3/8 14 mm 3/8'' 8 mm 62.5 mm 29.5 mm 16 mm 20 mm 21.5 mm
57215-14-1/2 14 mm 1/2'' 9.5 mm 62.5 mm 31 mm 16 mm 25 mm 21.5 mm
57215-16-3/8 16 mm 3/8'' 8 mm 66.5 mm 40 mm 19 mm 25 mm 24 mm
57215-6-M12X1 6 mm M12 x 1 7.5 mm 42 mm 22 mm 11 mm 16 mm 12.5 mm
57215-6-M12X1.25 6 mm M12 x 1.25 7.5 mm 42 mm 22 mm 11 mm 16 mm 12.5 mm
57215-6-M12X1.5 6 mm M12 x 1.5 7.5 mm 42 mm 22 mm 11 mm 16 mm 12.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
