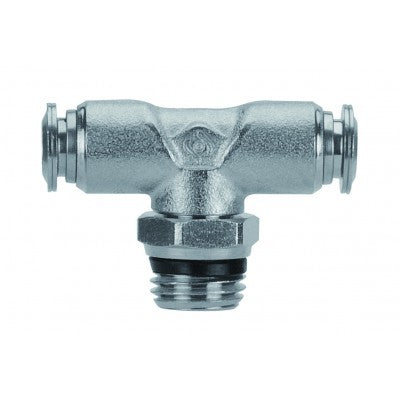

57210-12-3/8 by AIGNEP | 57 Series | Swivel Male Branch Metal Release Collet | 12mm Tube x 3/8" Swift-Fit Male Universal Thread | Tee | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $76.95 |
| 20–59 | $69.58 |
| 60+ | $61.40 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Swivel Branch Tee Metallic
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
| Product Number | Tube | A | B (IN) | B | L1 | L2 | CH1 | CH2 | D |
|---|---|---|---|---|---|---|---|---|---|
| 57210-6-1/8 | 6 mm | 1/8" | 0.216" | 5.5 mm | 42 mm | 22 mm | 11 mm | 13 mm | 12.5 mm |
| 57210-6-1/4 | 6 mm | 1/4" | 0.275" | 7 mm | 42 mm | 23.5 mm | 11 mm | 15 mm | 12.5 mm |
| 57210-10-1/4 | 10 mm | 1/4" | 0.275" | 7 mm | 53 mm | 29 mm | 14 mm | 16 mm | 17.5 mm |
| 57210-10-3/8 | 10 mm | 3/8" | 0.295" | 7.5 mm | 53 mm | 27 mm | 14 mm | 17 mm | 17.5 mm |
| 57210-10-1/2 | 10 mm | 1/2" | 0.354" | 9 mm | 53 mm | 29.5 mm | 14 mm | 21 mm | 17.5 mm |
| 57210-12-3/8 | 12 mm | 3/8" | 0.295" | 7.5 mm | 62.5 mm | 29.5 mm | 16 mm | 20 mm | 21.5 mm |
| 57210-12-1/2 | 12 mm | 1/2" | 0.354" | 9 mm | 62.5 mm | 32 mm | 16 mm | 21 mm | 21.5 mm |
