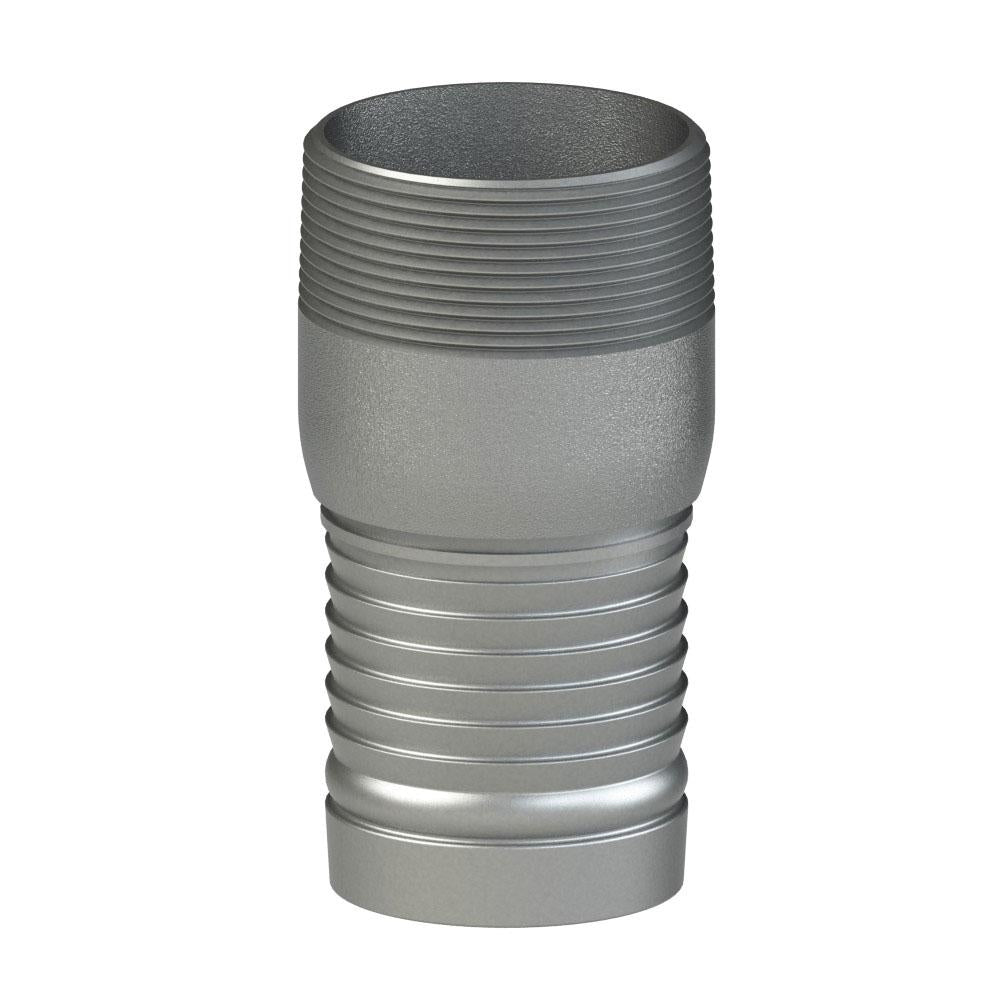

5716002 (60TMC50SS) PROGRIP™ by PT-Coupling | Type TMC50 | C50 External Crimp Fitting | 6" Male NPT x 6" Hose Shank | 304 Stainless Steel

5716002 (60TMC50SS) PROGRIP™ by PT-Coupling | Type TMC50 | C50 External Crimp Fitting | 6" Male NPT x 6" Hose Shank | 304 Stainless Steel

Sale price$357.04

PT Coupling
PROGRIP™ | C50 External Crimp System | Type TMC50 | Male NPT x Hose Shank | 304 Stainless Steel

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–14 $335.62
15–29 $303.48
30+ $267.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • ProGrip C50 External Crimp System
Shape:

Straight

Ends Configuration:
  • 6in Male NPT
  • 6in Hose Barb
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part Name Item # Size Max. Allowable
Working Press.
(PSI)*
07TMC50SS 5710702 3/4" -
10TMC50SS 5711002 1" 600 PSI
12TMC50SS 5711202 1-1/4" 600 PSI
15TMC50SS 5711502 1-1/2" 600 PSI
20TMC50SS 5712002 2" 600 PSI
25TMC50SS 5712502 2-1/2" 600 PSI
30TMC50SS 5713002 3" 600 PSI
40TMC50SS 5714002 4" 500 PSI
60TMC50SS 5716002 6" 400 PSI

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
