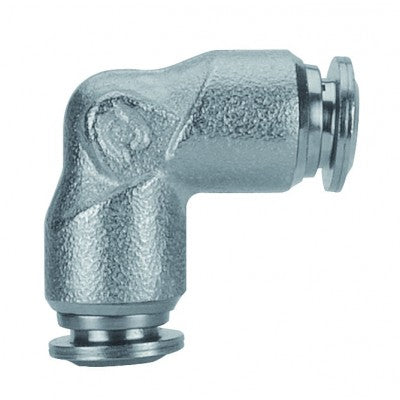

57130-14 by AIGNEP | 57 Series | Union Metal Release Collet | 14mm Tube | 90° Elbow | Pack of 10
57130-14 by AIGNEP | 57 Series | Union Metal Release Collet | 14mm Tube | 90° Elbow | Pack of 10

57130-14 by AIGNEP | 57 Series | Union Metal Release Collet | 14mm Tube | 90° Elbow | Pack of 10

Sale price$74.29

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $69.83
40–79 $63.15
80+ $55.72
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

90 Degree

Ends Configuration:
  • 14mm Push-to-Connect
  • 14mm Push-to-Connect
  • Some Ends Match

Union Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Product Number Tube L CH D
57130-5 5 mm 20 mm 11 mm 12.5 mm
57130-6 6 mm 21 mm 11 mm 12.5 mm
57130-10 10 mm 26.5 mm 16 mm 17 mm
57130-12 12 mm 30.5 mm 19 mm 21.5 mm
57130-14 14 mm 32.5 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
