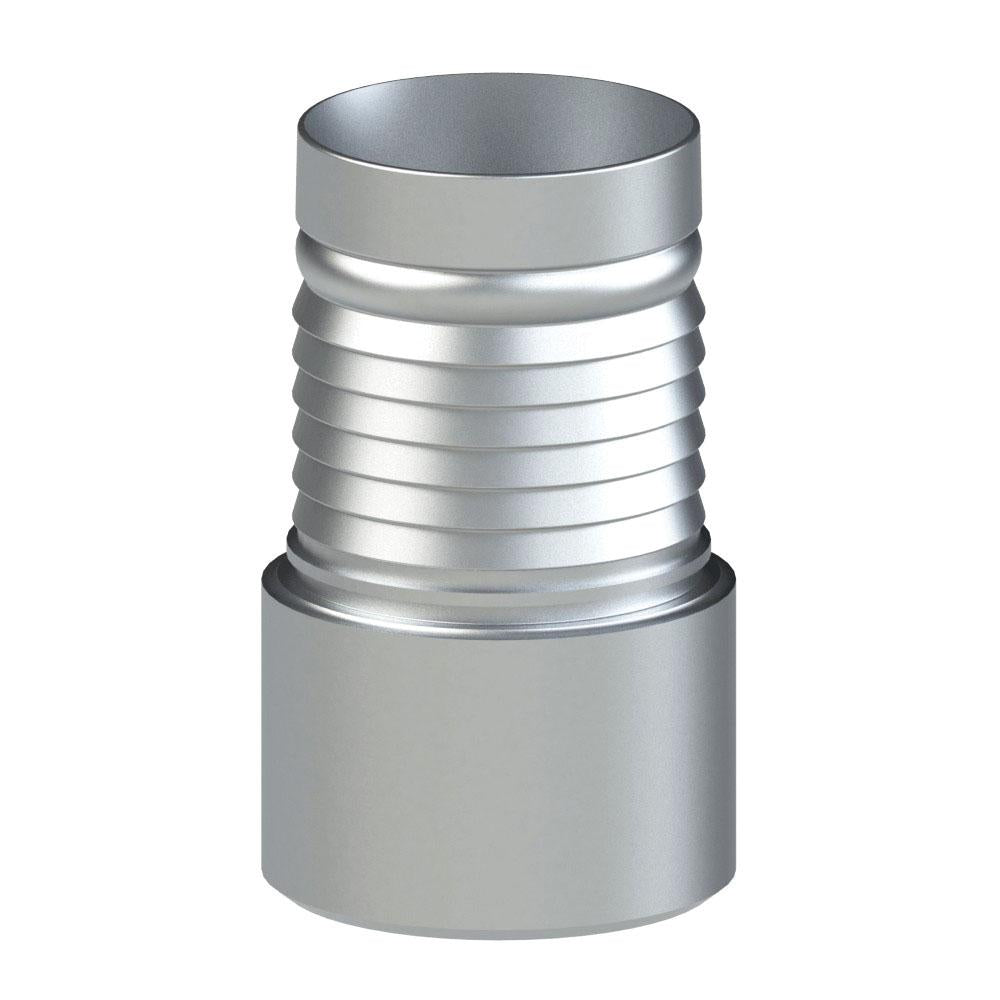

5712514 (25WC50SS) PROGRIP™ by PT-Coupling | Type WC50 | ProGrip C50 External Crimp Fitting | 2-1/2" Butt Weld Schedule 40 Pipe x 2-1/2" Hose Shank | 304 Stainless Steel

5712514 (25WC50SS) PROGRIP™ by PT-Coupling | Type WC50 | ProGrip C50 External Crimp Fitting | 2-1/2" Butt Weld Schedule 40 Pipe x 2-1/2" Hose Shank | 304 Stainless Steel

Sale price$64.48

PT Coupling
PROGRIP™ | C50 External Crimp System | Type WC50 | Butt Weld Schedule 40 Pipe x Hose Shank | 304 Stainless Steel

Made in the USA.
Buy More, Save More!
Quantity Price Each
10–39 $60.61
40–79 $54.81
80+ $48.36
Discounts applied in cart/checkout.

Product Data:

Series:
  • ProGrip C50 External Crimp System
Shape:

Straight

Ends Configuration:
  • 2-1/2in Weld End
  • 2-1/2in Hose Barb
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Max. Allowable
Working Press.
(PSI)*
10WC50SS 5711014 1" 600 PSI
25WC50SS 5712514 2-1/2" 600 PSI
40WC50SS 5714014 4" 500 PSI

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
