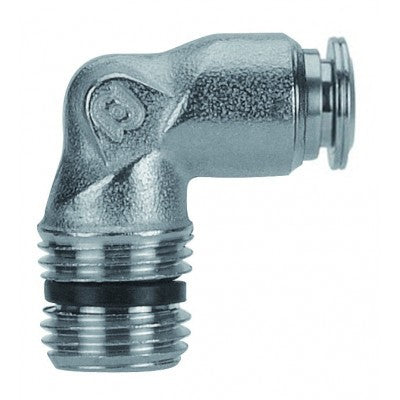

57100-4-M5 by AIGNEP | 57 Series | Fixed Metal Release Collet | 4mm Tube x M5 Male BSPT | 90° Elbow | Pack of 10
57100-4-M5 by AIGNEP | 57 Series | Fixed Metal Release Collet | 4mm Tube x M5 Male BSPT | 90° Elbow | Pack of 10

57100-4-M5 by AIGNEP | 57 Series | Fixed Metal Release Collet | 4mm Tube x M5 Male BSPT | 90° Elbow | Pack of 10

Sale price$29.21

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $27.46
40–79 $24.83
80+ $21.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

90 Degree

Material(s):
  • Nickel-Plated Brass

Fixed Male Elbow Metallic - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPT
Product Number Tube A B L1 L2 CH D
57100-4-M5 4 mm M5 5 mm 17 mm 15 mm 9 mm 10 mm
57100-4-1/8 4 mm 1/8'' 7.5 mm 17 mm 15.5 mm 9 mm 10 mm
57100-5-1/8 5 mm 1/8'' 7.5 mm 20 mm 17.5 mm 11 mm 12.5 mm
57100-6-1/8 6 mm 1/8'' 7.5 mm 21 mm 17.5 mm 11 mm 12.5 mm
57100-6-1/4 6 mm 1/4'' 11 mm 21 mm 21.5 mm 11 mm 12.5 mm
57100-8-1/8 8 mm 1/8'' 7.5 mm 22.5 mm 19 mm 13 mm 14 mm
57100-8-1/4 8 mm 1/4'' 11 mm 22.5 mm 21.5 mm 13 mm 14 mm
57100-10-1/4 10 mm 1/4'' 11 mm 26.5 mm 24.5 mm 16 mm 17 mm
57100-10-3/8 10 mm 3/8'' 11.5 mm 26.5 mm 24 mm 16 mm 17 mm
57100-12-1/4 12 mm 1/4'' 11 mm 30.5 mm 28 mm 19 mm 21.5 mm
57100-12-3/8 12 mm 3/8'' 11.5 mm 30.5 mm 28 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
