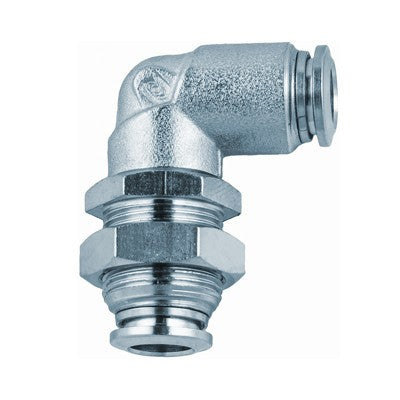

57060-6 by AIGNEP | 57 Series | Bulkhead Orienting | 6mm Tube | 90° Elbow | Pack of 10
57060-6 by AIGNEP | 57 Series | Bulkhead Orienting | 6mm Tube | 90° Elbow | Pack of 10

57060-6 by AIGNEP | 57 Series | Bulkhead Orienting | 6mm Tube | 90° Elbow | Pack of 10

Sale price$95.89

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
5–19 $90.14
20–59 $81.51
60+ $71.92
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

90 Degree

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match

Swivel Elbow Bulkhead Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR

Product Number Tube M L1 L2 CH CH1 CH2 D
57060-6 6 mm M14X1 21.5 mm 31 mm 11 mm 17 mm 17 mm 12.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
