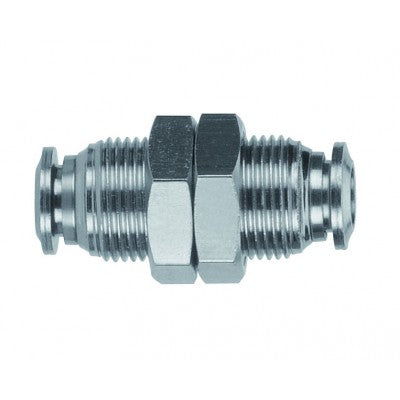

57050-5 by AIGNEP | 57 Series | Bulkhead Union Metal Release Collet | 5mm Tube | Pack of 10
57050-5 by AIGNEP | 57 Series | Bulkhead Union Metal Release Collet | 5mm Tube | Pack of 10

57050-5 by AIGNEP | 57 Series | Bulkhead Union Metal Release Collet | 5mm Tube | Pack of 10

Sale price$60.59

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $56.95
40–79 $51.50
80+ $45.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Straight

Ends Configuration:
  • 5mm Push-to-Connect
  • 5mm Push-to-Connect
  • Some Ends Match

Bulkhead Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number Tube M CH L A Max
57050-4 4 mm M12X1 17 mm 31.5 mm 7 mm
57050-5 5 mm M14X1 17 mm 33 mm 7 mm
57050-6 6 mm M14X1 17 mm 35 mm 9.5 mm
57050-10 10 mm M20X1 24 mm 43 mm 12.5 mm
57050-12 12 mm M22X1 26 mm 48 mm 16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
