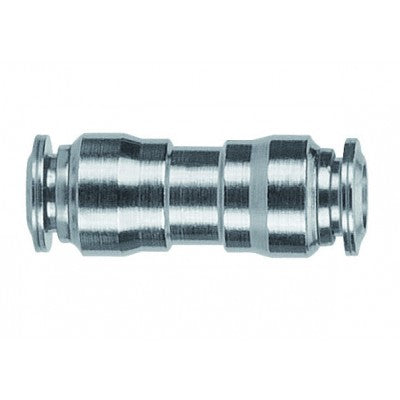

57040-12-10 by AIGNEP | 57 Series | Union Metal Release Collet | 12mm Tube x 10mm Tube | Pack of 10
57040-12-10 by AIGNEP | 57 Series | Union Metal Release Collet | 12mm Tube x 10mm Tube | Pack of 10

57040-12-10 by AIGNEP | 57 Series | Union Metal Release Collet | 12mm Tube x 10mm Tube | Pack of 10

Sale price$56.27

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $52.89
40–79 $47.83
80+ $42.20
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Straight

Ends Configuration:
  • 12mm Push-to-Connect
  • 10mm Push-to-Connect

Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Product Number Tube B L
57040-5 5 mm 11.5 mm 33 mm
57040-6 6 mm 12.5 mm 34 mm
57040-8 8 mm 14.5 mm 36 mm
57040-10 10 mm 17.5 mm 42 mm
57040-12 12 mm 20.5 mm 47 mm
57040-14 14 mm 21.5 mm 49 mm

Unequal Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Product Number Tube B L
57040-6-4 6 x 4 mm 12.5 mm 32 mm
57040-8-6 8 x 6 mm 14.5 mm 35 mm
57040-10-8 10 x 8 mm 17.5 mm 40.5 mm
57040-12-10 12 x 10 mm 20.5 mm 45.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
