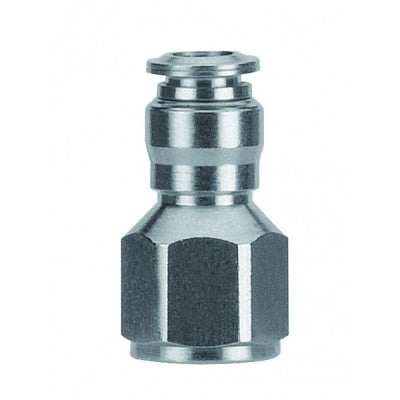

57030-8-1/4 by AIGNEP | 57 Series | Female Metal Release Collet | 8mm Tube x 1/4" BSPP Male | Straight | Pack of 10
57030-8-1/4 by AIGNEP | 57 Series | Female Metal Release Collet | 8mm Tube x 1/4" BSPP Male | Straight | Pack of 10

57030-8-1/4 by AIGNEP | 57 Series | Female Metal Release Collet | 8mm Tube x 1/4" BSPP Male | Straight | Pack of 10

Sale price$35.51

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $33.38
40–79 $30.18
80+ $26.63
Discounts applied in cart/checkout.

Product Data:

Series:
  • 57 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/4in Male BSPP

Straight Female Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Type: BSPP
Product Number Tube A Thread Type B L CH
57030-4-M5 4 mm M5 BSPP 5.5 mm 21 mm 11 mm
57030-4-1/8 4 mm 1/8" BSPP 8.5 mm 24 mm 13 mm
57030-4-1/4 4 mm 1/4" BSPP 11 mm 27.5 mm 16 mm
57030-5-1/8 5 mm 1/8" BSPP 8.5 mm 26.5 mm 13 mm
57030-6-1/8 6 mm 1/8" BSPP 8.5 mm 26 mm 13 mm
57030-6-1/4 6 mm 1/4" BSPP 11 mm 29.5 mm 16 mm
57030-8-1/8 8 mm 1/8" BSPP 8.5 mm 27 mm 15 mm
57030-8-1/4 8 mm 1/4" BSPP 11 mm 29.5 mm 17 mm
57030-8-3/8 8 mm 3/8" BSPP 12 mm 32 mm 19 mm
57030-10-1/4 10 mm 1/4" BSPP 11 mm 32 mm 18 mm
57030-10-3/8 10 mm 3/8'' BSPP 12 mm 33.5 mm 19 mm
57030-10-1/2 10 mm 1/2" BSPP 15 mm 39 mm 24 mm
57030-12-3/8 12 mm 3/8" BSPP 12 mm 36 mm 21 mm
57030-12-1/2 12 mm 1/2" BSPP 15 mm 41 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
