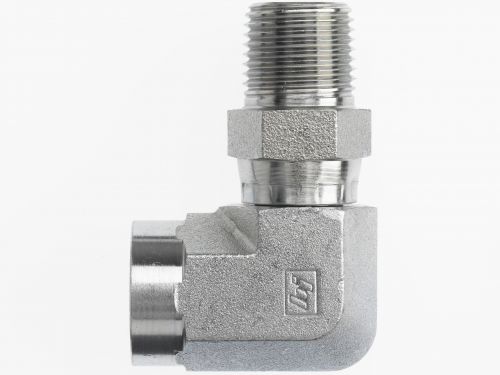

5702-04-04-FG by Brennan Inc. | -04 Female Pipe x -04 Male Pipe Swivel | 90° Elbow | Forged Steel

5702-04-04-FG by Brennan Inc. | -04 Female Pipe x -04 Male Pipe Swivel | 90° Elbow | Forged Steel

Sale price$31.43

Brennan Inc.
Tube Fittings & Adapters: 5702 - Female Pipe x Male Pipe Swivel 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $29.54
40–79 $26.72
80+ $23.57
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Male NPTF
  • Some Ends Match
Material(s):
  • Steel
Part Number Material A1 NPTF A2 NPTF N Length N1 Length Y Flats
5702-04-04-FG Forged Steel 1/4-18" 1/4-18" 0.88" 1.56" 0.750"
5702-06-06-FG Forged Steel 3/8-18" 3/8-18" 1.02" 1.70" 0.875"
5702-08-08-FG Forged Steel 1/2-14" 1/2-14" 1.23" 2.01" 1.062"
5702-12-12-FG Forged Steel 3/4-14" 3/4-14" 1.37" 2.25" 1.375"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
