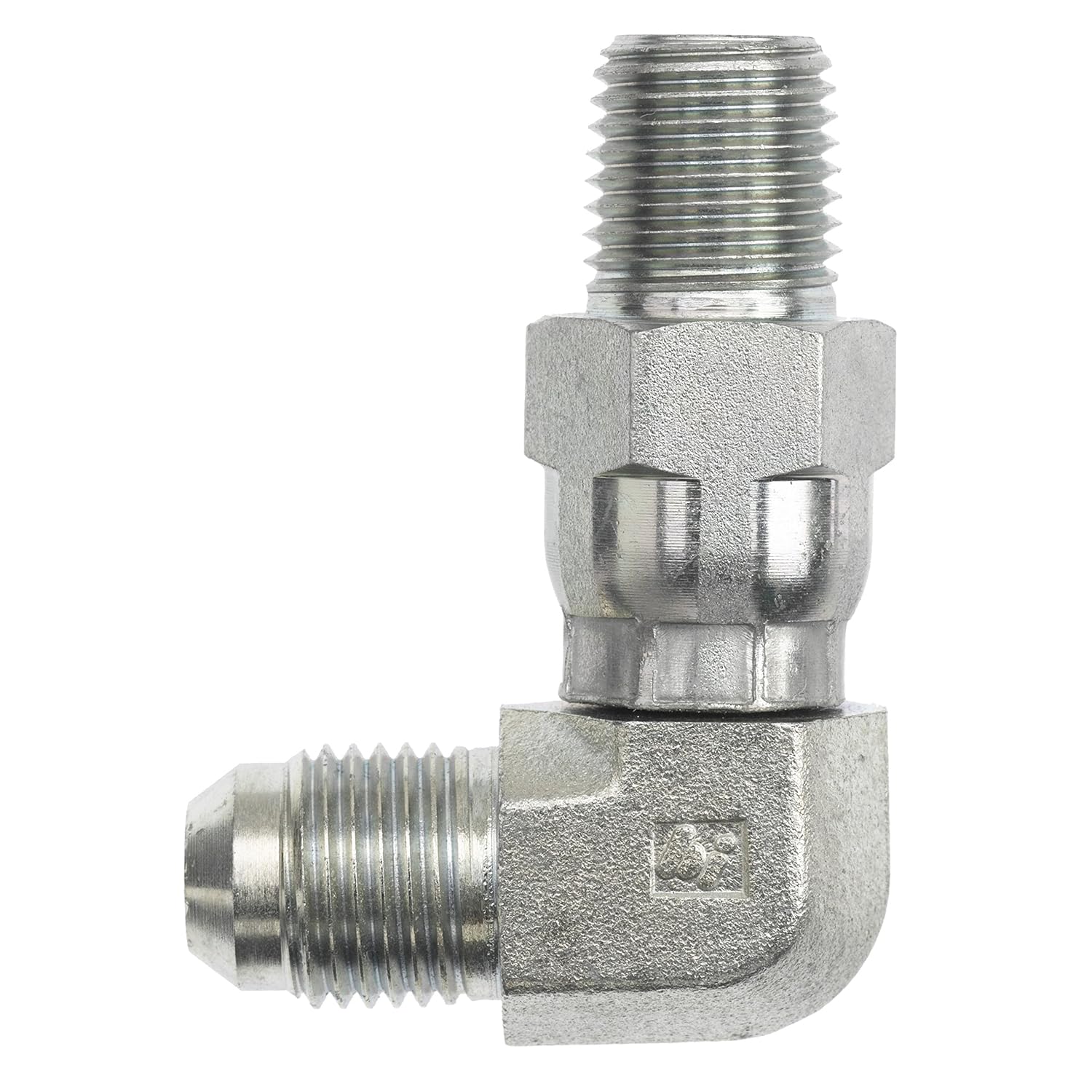

5701-08-06-FG by Brennan Inc. | -08 Male JIC x -06 Male Pipe Swivel | 90° Elbow | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 5701 - Male JIC x Male Pipe Swivel 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.63 |
| 40–79 | $34.03 |
| 80+ | $30.02 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE37° | A2 NPTF | B1 Drill | N Length | L Length | Y Flats |
| 5701-04-04-FG | Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 1.051" | 1.506" | 0.562" |
| 5701-06-04-FG | Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 1.08" | 1.72" | 0.687" |
| 5701-06-06-FG | Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 1.14" | 1.66" | 0.750" |
| 5701-08-06-FG | Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 1.250" | 1.660" | 0.750" |
| 5701-08-08-FG | Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 1.330" | 2.150" | 0.750" |
| 5701-10-08-FG | Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 1.450" | 1.960" | 0.875" |
| 5701-12-12-FG | Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 1.670" | 2.327" | 1.062" |
