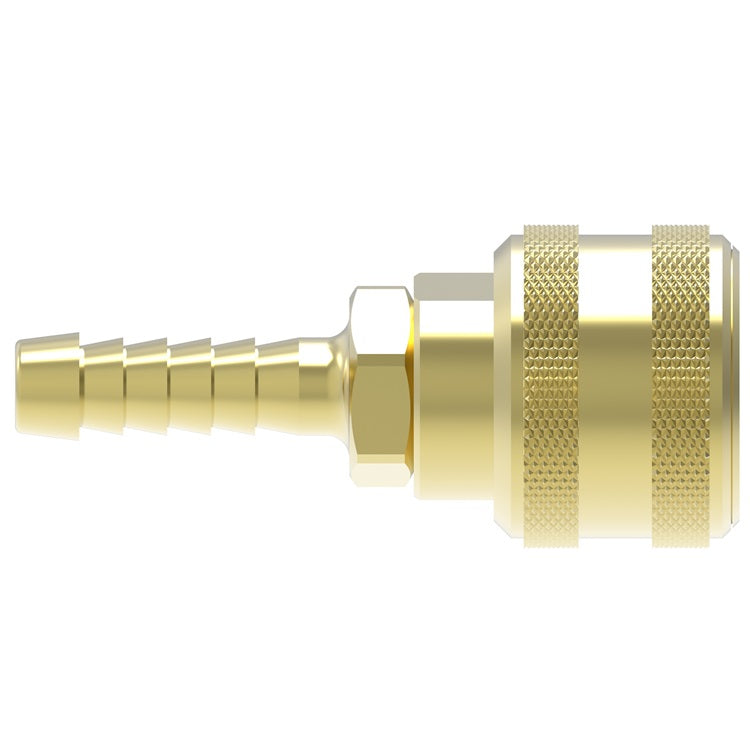

5700E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | Hose Barb End | 3/8" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
5700E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | Hose Barb End | 3/8" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
5700E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | Hose Barb End | 3/8" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass

5700E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | Hose Barb End | 3/8" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass

Sale price$39.34

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 5000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.
Buy More, Save More!
Quantity Price Each
10–39 $36.98
40–79 $33.44
80+ $29.51
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5000 Series
Shape:

Straight
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
5000 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,040 lpm 72 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
5000 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B
50400 Socket/Female 1/2" 1/4" Hose Stem Brass 1 3.29"
(83.57mm)		 1.50"
(38.10mm)
5700E Socket/Female 1/2" 3/8" Hose Stem Brass 1 3.33"
(84.58mm)		 1.50"
(38.10mm)
5800E Socket/Female 1/2" 1/2" Hose Stem Brass 1 3.25"
(82.55mm)		 1.50"
(38.10mm)
5900 Socket/Female 1/2" 3/4" Hose Stem Brass 1 4.10"
(104.14mm)		 1.50"
(38.10mm)
5000 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
C D
585 Plug/Male 1/2" 5/16" Hose Stem Steel 2 2.66"
(67.6mm)		 0.69"
(17.5mm)
59 Plug/Male 1/2" 3/8" Hose Stem Steel 2 2.66"
(67.6mm)		 0.69"
(17.5mm)
59G** Plug/Male 1/2" 3/8" Hose Stem Brass 2 3.37"
(85.6mm)		 0.98"
(24.9mm)
60 Plug/Male 1/2" 1/2" Hose Stem Steel 2 2.66"
(67.6mm)		 0.75"
(19.1mm)
60G** Plug/Male 1/2" 1/2" Hose Stem Brass 2 3.37"
(85.6mm)		 0.98"
(24.9mm)
61E Plug/Male 1/2" 3/4" Hose Stem Steel 2 3.50"
(88.9mm)		 1.00"
(25.4mm)
61G** Plug/Male 1/2" 3/4" Hose Stem Brass 2 4.22"
(107.2mm)		 1.00"
(25.4mm)
B60 Plug/Male 1/2" 1/2" Hose Stem Steel 2 2.75"
(69.85mm)		 0.88"
(22.35mm)

** With Bleeder Ball Check - Reduces Hose Whip.
