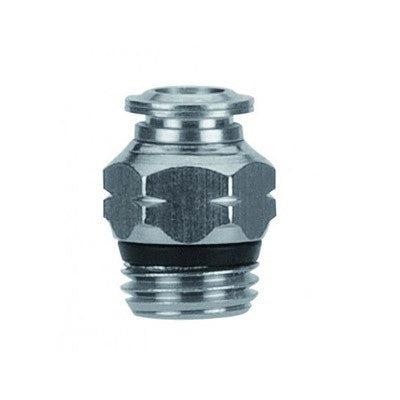

57000-6-3/8 by AIGNEP | 57 Series | Male Metal Release Collet | 6mm Tube x 3/8" Swift-Fit Male | Straight | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.04 |
| 40–79 | $22.64 |
| 80+ | $19.98 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Straight Male Metallic
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

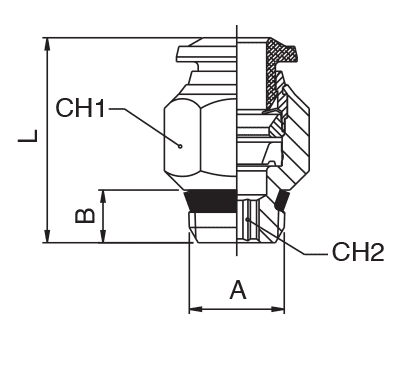

| Product Number | Tube | A | B | L | CH1 | CH2 |
|---|---|---|---|---|---|---|
| 57000-6-1/8 | 6 mm | 1/8'' | 5.5 mm | 21.5 mm | 13 mm | 4 mm |
| 57000-6-1/4 | 6 mm | 1/4'' | 7 mm | 21 mm | 14 mm | 4 mm |
| 57000-6-3/8 | 6 mm | 3/8'' | 7.5 mm | 23 mm | 17 mm | 4 mm |
| 57000-6-1/2 | 6 mm | 1/2'' | 9 mm | 23.5 mm | 21 mm | 4 mm |
| 57000-12-1/4 | 12 mm | 1/4'' | 7 mm | 31.5 mm | 20 mm | 7 mm |
| 57000-12-3/8 | 12 mm | 3/8'' | 7.5 mm | 29.5 mm | 20 mm | 9 mm |
| 57000-14-3/8 | 14 mm | 3/8'' | 7.5 mm | 32.5 mm | 21 mm | 9 mm |
| 57000-14-1/2 | 14 mm | 1/2'' | 9 mm | 31.5 mm | 21 mm | 10 mm |
