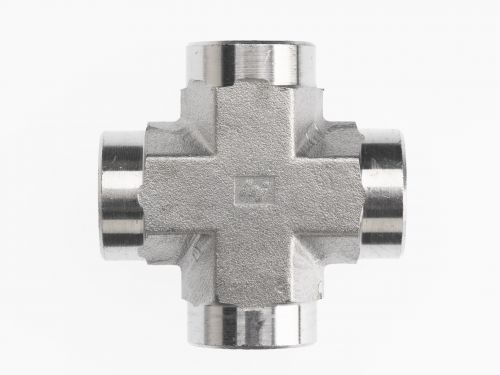

5652-20-20-20-20-FG by Brennan Inc. | -20 Female Pipe x -20 Female Pipe x -20 Female Pipe x -20 Female Pipe | Cross | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 5652 - Female Pipe x Female Pipe x Female Pipe x Female Pipe Cross
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $88.43 |
| 20–59 | $79.96 |
| 60+ | $70.55 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Cross
Ends Configuration:
Material(s):
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Material | A1 NPTF |
A2 NPTF |
A3 NPTF |
A4 NPTF |
N Length |
Y Flats |
| 5652-02-02-02-02-FG | Forged Steel | 1/8-27" | 1/8-27" | 1/8-27" | 1/8-27" | 0.660" | 0.562" |
| 5652-04-04-04-04-FG | Forged Steel | 1/4-18" | 1/4-18" | 1/4-18" | 1/4-18" | 0.880" | 0.750" |
| 5652-06-06-06-06-FG | Forged Steel | 3/8-18" | 3/8-18" | 3/8-18" | 3/8-18" | 1.020" | 0.875" |
| 5652-08-08-08-08-FG | Forged Steel | 1/2-14" | 1/2-14" | 1/2-14" | 1/2-14" | 1.23" | 1.062" |
| 5652-12-12-12-12-FG | Forged Steel | 3/4-14" | 3/4-14" | 3/4-14" | 3/4-14" | 1.360" | 1.312" |
| 5652-16-16-16-16-FG | Forged Steel | 1-11-1/2" | 1-11-1/2" | 1-11-1/2" | 1-11-1/2" | 1.62" | 1.625" |
| 5652-20-20-20-20-FG | Forged Steel | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1.700" | 1.875" |
| 5652-24-24-24-24-FG | Forged Steel | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 2.08" | 2.561" |
| 5652-32-32-32-32-FG | Forged Steel | - | - | - | - | - | - |
| 5652-04-04-04-04-B | Brass | 1/4-18" | 1/4-18" | 1/4-18" | 1/4-18" | 0.880" | 0.750" |
| 5652-02-02-02-02-SS | Stainless Steel | 1/8-27" | 1/8-27" | 1/8-27" | 1/8-27" | 0.660" | 0.562" |
| 5652-04-04-04-04-SS | Stainless Steel | 1/4-18" | 1/4-18" | 1/4-18" | 1/4-18" | 0.880" | 0.750" |
| 5652-06-06-06-06-SS | Stainless Steel | 3/8-18" | 3/8-18" | 3/8-18" | 3/8-18" | 1.020" | 0.875" |
| 5652-08-08-08-08-SS | Stainless Steel | 1/2-14" | 1/2-14" | 1/2-14" | 1/2-14" | 1.23" | 1.062" |
| 5652-12-12-12-12-SS | Stainless Steel | 3/4-14" | 3/4-14" | 3/4-14" | 3/4-14" | 1.360" | 1.312" |
| 5652-16-16-16-16-SS | Stainless Steel | 1-11-1/2" | 1-11-1/2" | 1-11-1/2" | 1-11-1/2" | 1.62" | 1.625" |
