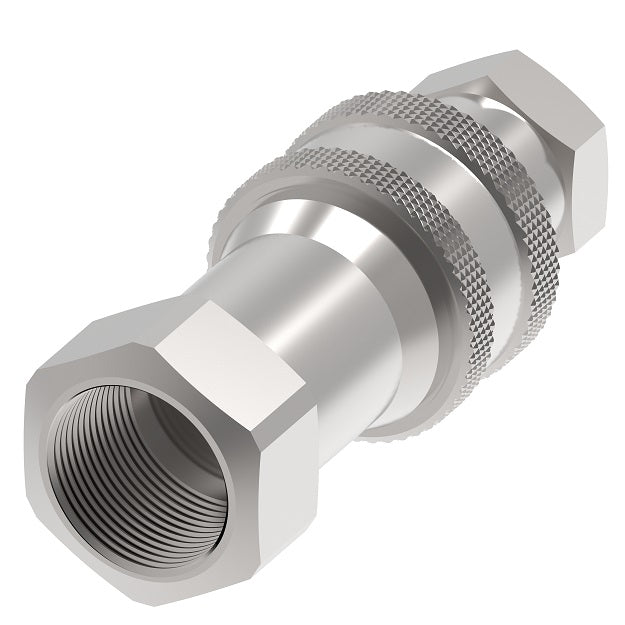

5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel
5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel
5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel
5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel

5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel

Sale price$142.16

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange
Buy More, Save More!
Quantity Price Each
5–19 $133.63
20–59 $120.84
60+ $106.62
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5600 Series
Shape:

Straight

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT, Connect Under Pressure Style

Fluid Transfer and Hydraulic Quick Disconnect Coupling

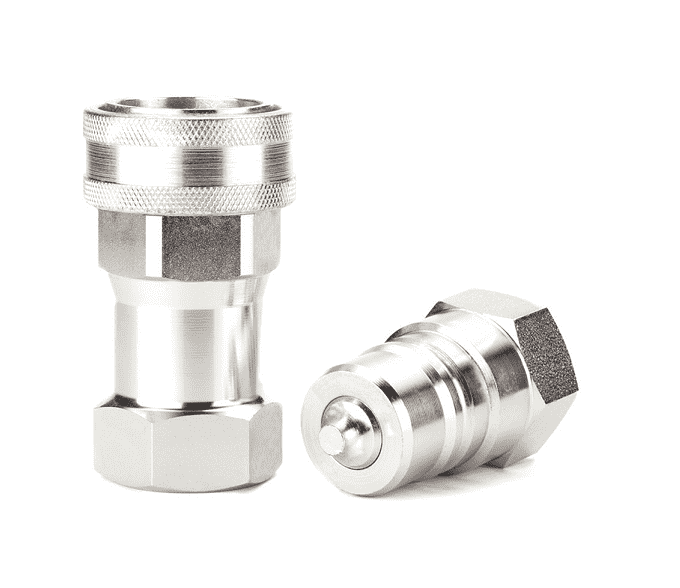

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.

Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Streamlined valving provides minimum pressure drop.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Dump, snow plow and maintenance vehicles
  • In-plant manufacturing
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size)
  • Standard seal materials: Buna-N, EPDM and FKM
Body Size Max. Operating Pressure Minimum Burst Pressure Connected Vacuum Connected Only Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4 350 5000 1050 15000 28 4 1 0.50 0.50
3/8 280 4000 840 12000 28 23 6 1.5 1.3
5/8 280 4000 840 12000 28 45 12 2.8 2.8
3/4 280 4000 840 12000 28 106 28 10.0 8.2
1 280 4000 840 12000 28 189 50 14.2 14.2
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Complete Plug and Socket Set (Figure 3)
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Type Figure Dimensions
Buna-N FKM EPDM A B Hex 1
mm in mm in mm in
5602-8-10S FD56-1062-08-10 5644-8-10S Plug/Male 5/8" 1/2" 1/2-14 Female NPT Valved 1 51.3mm 2.02" - - 26.9mm 1.06"
5651-8-10S Socket/Female 5/8" 1/2" 1/2-14 Female NPT 4 73.2mm 2.88" 38.1mm 1.50" 26.9mm 1.06"
5650-8-10S Complete 5/8" 1/2" 1/2-14 Female NPT 5 98.8mm 3.89" - - - -
5602-12-10S FD56-1062-12-10 5644-12-10S Plug/Male 5/8" 3/4" 3/4-14 Female NPT Valved 1 54.9mm 2.16" 35.1mm 1.38"
5650-12-10S Complete 5/8" 3/4" 3/4-14 Female NPT 5 113mm 4.45" - - - -
