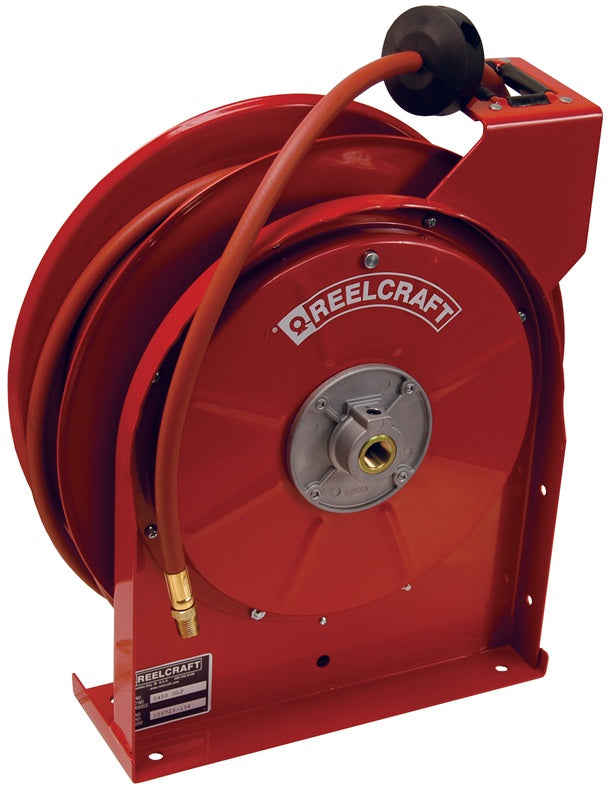

5635LP by Dixon Valve | Reelcraft® 5000 Series | Spring Driven Hose Reel - with Hose | 3/8" Hose ID | 35ft Hose Length | Steel

5635LP by Dixon Valve | Reelcraft® 5000 Series | Spring Driven Hose Reel - with Hose | 3/8" Hose ID | 35ft Hose Length | Steel

Sale price$656.71
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Air, Water
Construction:
  • Reel inlet 3/8" NPTF
  • All steel construction
  • Full shaft and swivel
  • Supplied standard with PVC hose
Safety Note:
  • Compressed air hose should not be converted to oxygen service. Compressed air hoses are often contaminated with an oil coating, which can react explosively when oxygen is introduced.
Specifications:
  • Maximum temperature 150°F (66°C)
Reel with Hose
Part Number Hose I.D. Hose Length Service Working
Pressure
PSI
@70°F
5450LP 1/4" 50ft Air / Water 300 PSI
5635LP 3/8" 35ft Air / Water 300 PSI
5650LP 3/8" 50ft Air / Water 300 PSI
Reel without Hose
Part Number Hose Capacity Service Working
Pressure
PSI
@70°F
5600LP 50ft of 1/4" or 35ft of 3/8" Air / Water 500 PSI
5605LP 50ft of 3/8" Air / Water 500 PSI

Additional Product Data:

Brand:
  • Reelcraft
Series:
  • 5000 Series

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
