56230-2 by AIGNEP | 55/56 Series | Mini Composite Union | 2mm | Tee | Pack of 10
56230-2 by AIGNEP | 55/56 Series | Mini Composite Union | 2mm | Tee | Pack of 10

56230-2 by AIGNEP | 55/56 Series | Mini Composite Union | 2mm | Tee | Pack of 10

Sale price$71.78

Package Quantity: 10 ea

Buy more, save moreDiscounts applied in cart/checkout.

Union Tee Composite Mini

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

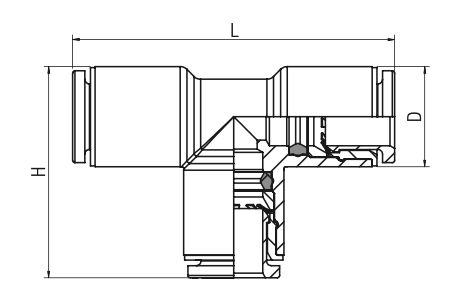

Product Number Tube H L D
56230-2 2 mm 14.5 mm 22 mm 6.5 mm
56230-3 3 mm 14.5 mm 22 mm 6.5 mm

Additional Product Data:

Series:
  • 55/56 Series
Shape:

Tee

Ends Configuration:
  • 2mm Push-to-Connect
  • 2mm Push-to-Connect
  • 2mm Push-to-Connect
  • Some Ends Match

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
