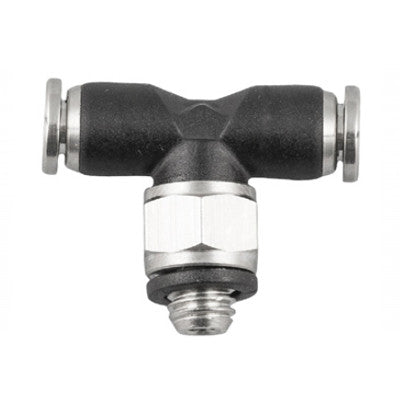

56215-2-M3 by AIGNEP | 55/56 Series | Mini Swivel Branch | 2mm Tube x M3 Male | Tee | Pack of 10
56215-2-M3 by AIGNEP | 55/56 Series | Mini Swivel Branch | 2mm Tube x M3 Male | Tee | Pack of 10

56215-2-M3 by AIGNEP | 55/56 Series | Mini Swivel Branch | 2mm Tube x M3 Male | Tee | Pack of 10

Sale price$71.95

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
5–19 $67.63
20–59 $61.16
60+ $53.96
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

90 Degree

Material(s):
  • Nylon

Swivel Branch Tee Composite Mini - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

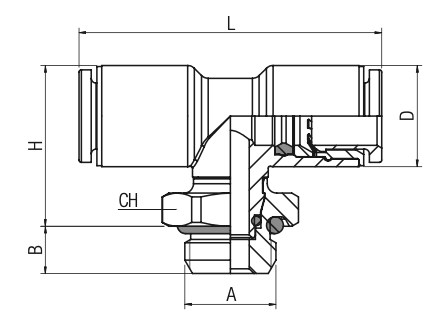

Product Number Tube A H B L CH D
56215-2-M3 2 mm M3 13 mm 3 mm 22 mm 8 mm 6.5 mm
56215-2-M5 2 mm M5 12.5 mm 4 mm 22 mm 8 mm 6.5 mm
56215-3-M3 3 mm M3 13 mm 3 mm 22 mm 8 mm 6.5 mm
56215-3-M5 3 mm M5 12.5 mm 4 mm 22 mm 8 mm 6.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
