56130-4 by AIGNEP | 56 Series | Mini Union | 4mm Tube | 90° Elbow | Pack of 10
56130-4 by AIGNEP | 56 Series | Mini Union | 4mm Tube | 90° Elbow | Pack of 10

56130-4 by AIGNEP | 56 Series | Mini Union | 4mm Tube | 90° Elbow | Pack of 10

Sale price$29.75

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $27.97
40–79 $25.29
80+ $22.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • 56 Series
Shape:

90 Degree

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match

Union Elbow Composite Mini

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR

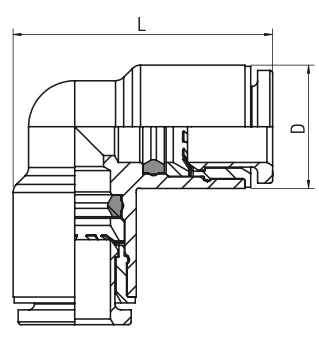

Product Number Tube L D
56130-2 2 mm 14.5 mm 6.5 mm
56130-3 3 mm 14.5 mm 6.5 mm
56130-4 4 mm 19 mm 8.5 mm
56130-6 6 mm 22.5 mm 10.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
