56115-2-M3 by AIGNEP | 55/56 Series | Mini Swivel | 2mm Tube x M3 Male | 90° Elbow | Pack of 10
56115-2-M3 by AIGNEP | 55/56 Series | Mini Swivel | 2mm Tube x M3 Male | 90° Elbow | Pack of 10

56115-2-M3 by AIGNEP | 55/56 Series | Mini Swivel | 2mm Tube x M3 Male | 90° Elbow | Pack of 10

Sale price$53.82

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $50.59
40–79 $45.75
80+ $40.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

90 Degree

Material(s):
  • Nylon

Swivel Male Composite Mini - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

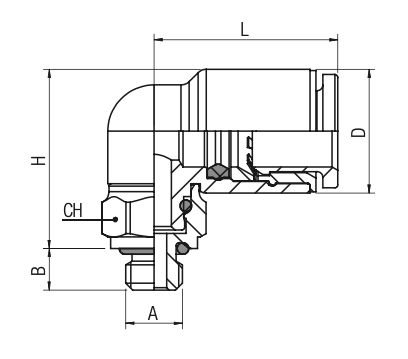

Product Number Tube A B L CH D H
56115-2-M3 2 mm M3 3 mm 11 mm 8 mm 6.5 mm 13 mm
56115-2-M5 2 mm M5 4 mm 11 mm 8 mm 6.5 mm 12.5 mm
56115-3-M3 3 mm M3 3 mm 11 mm 8 mm 6.5 mm 13 mm
56115-3-M5 3 mm M5 4 mm 11 mm 8 mm 6.5 mm 12.5 mm
56115-4-M5 4 mm M5 3.6 mm 14 mm 8 mm 8.5 mm 13.5 mm
56115-6-M5 6 mm M5 3.6 mm 16 mm 8 mm 10.5 mm 15.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
