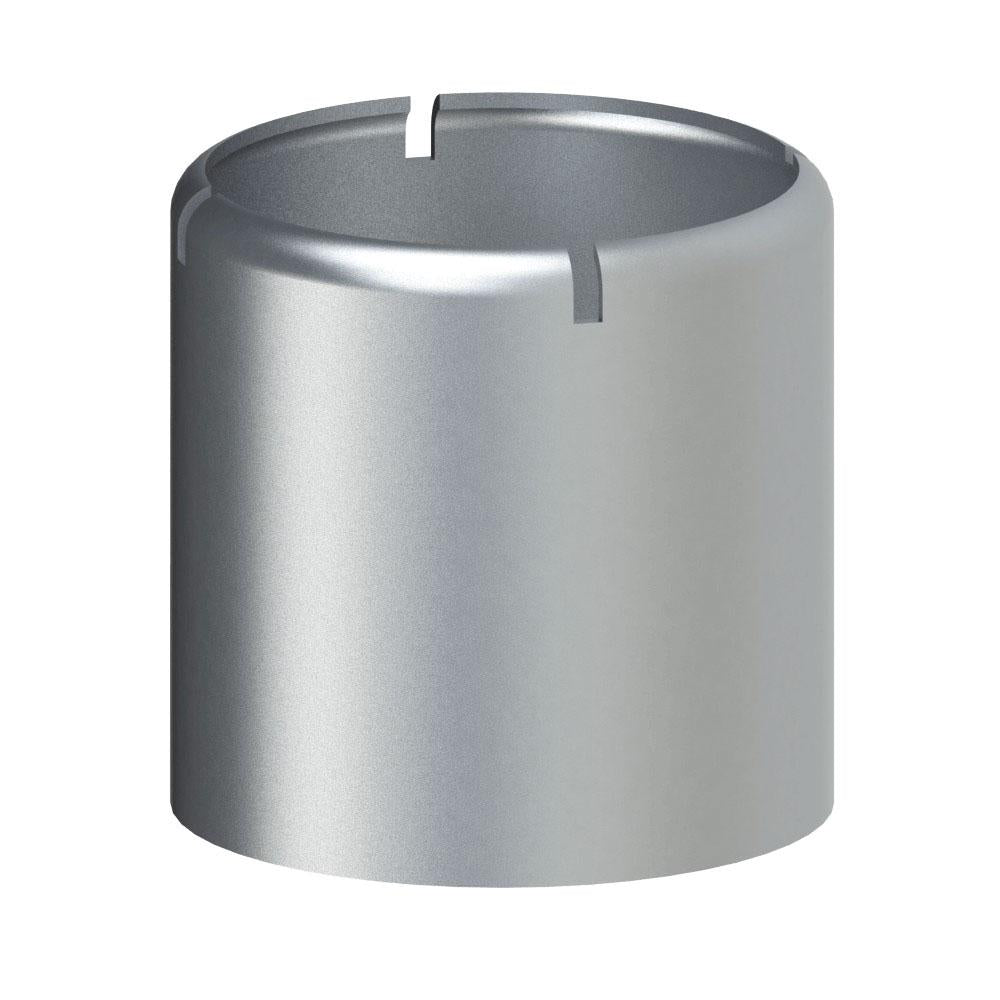

56030330 (30330C50AL) PROGRIP™ by PT-Coupling | Type C50AL | C50 External Crimp System | 3" Crimp Ferrule | 3.938" Ferrule ID | Aluminum

56030330 (30330C50AL) PROGRIP™ by PT-Coupling | Type C50AL | C50 External Crimp System | 3" Crimp Ferrule | 3.938" Ferrule ID | Aluminum

Sale price$20.73

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50AL | Crimp Ferrule | Aluminum

Made in the USA.
Buy More, Save More!
Quantity Price Each
10–39 $19.49
40–79 $17.62
80+ $15.55
Discounts applied in cart/checkout.

Product Data:

Series:
  • ProGrip C50 External Crimp System
Shape:

Straight

Material(s):
  • Aluminum
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
For use with:
  • C50 External Crimp System.
Part
Name		 Item # Size Ferrule ID
20220C50AL 56020220 2" 2.625"
20226C50AL 56020226 2" 2.813"

30320C50AL 56030320 3" 3.625"
30328C50AL 56030328 3" 3.875"
30330C50AL 56030330 3" 3.938"

40422C50AL 56040422 4" 4.688"
40424C50AL 56040424 4" 4.750"
40428C50AL 56040428 4" 4.875"
40430C50AL 56040430 4" 4.938"

50530C50AL 56050530 5" 5.938"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
