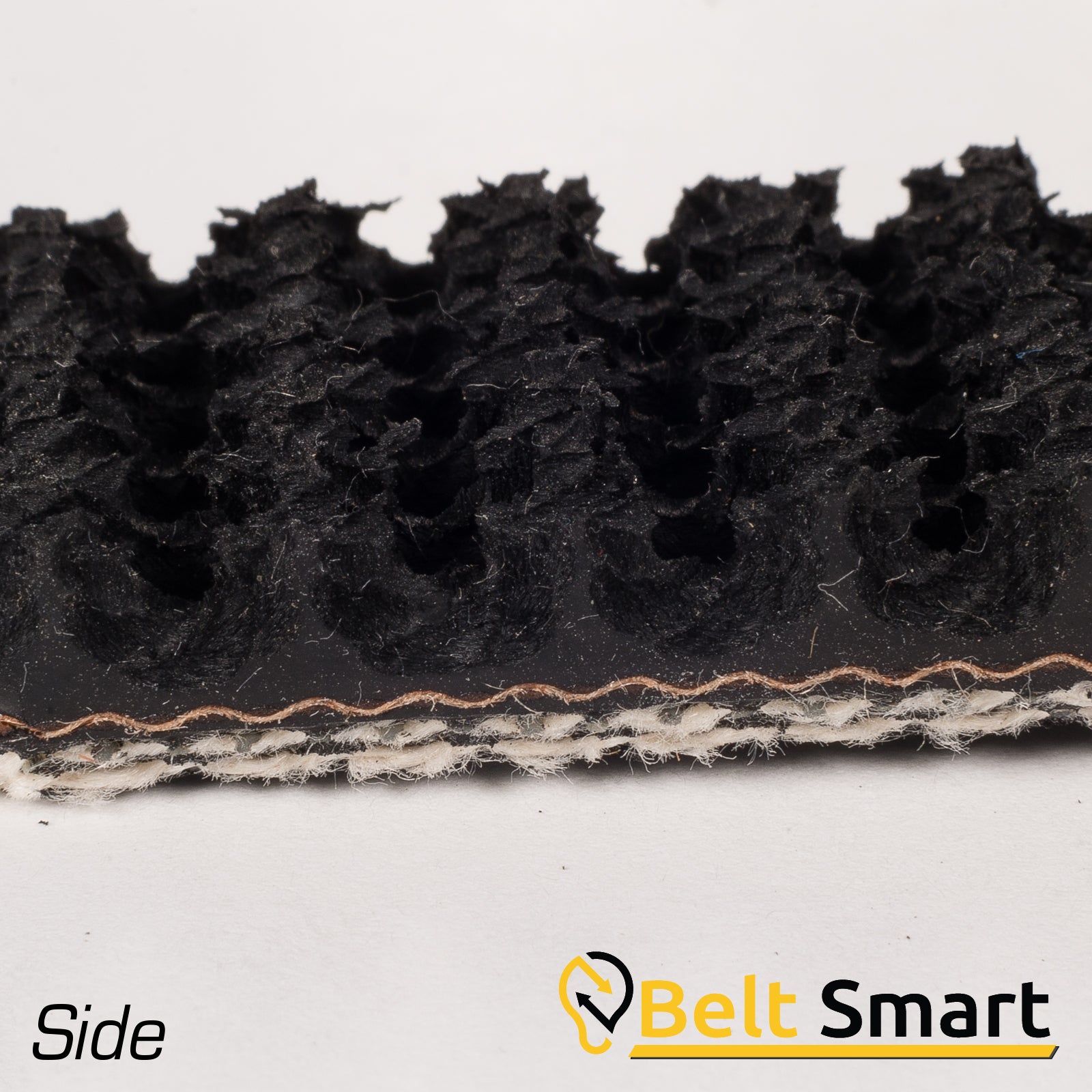

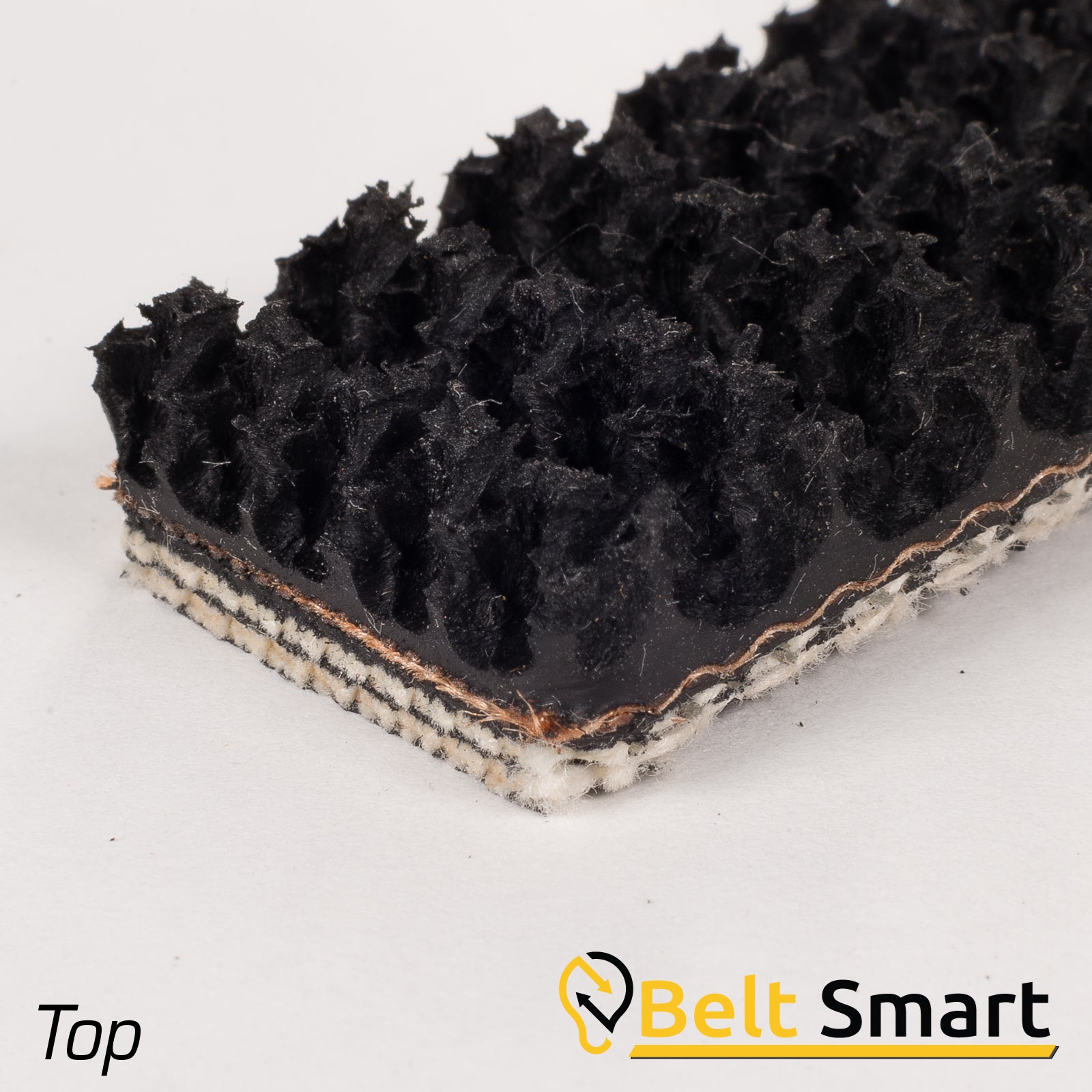

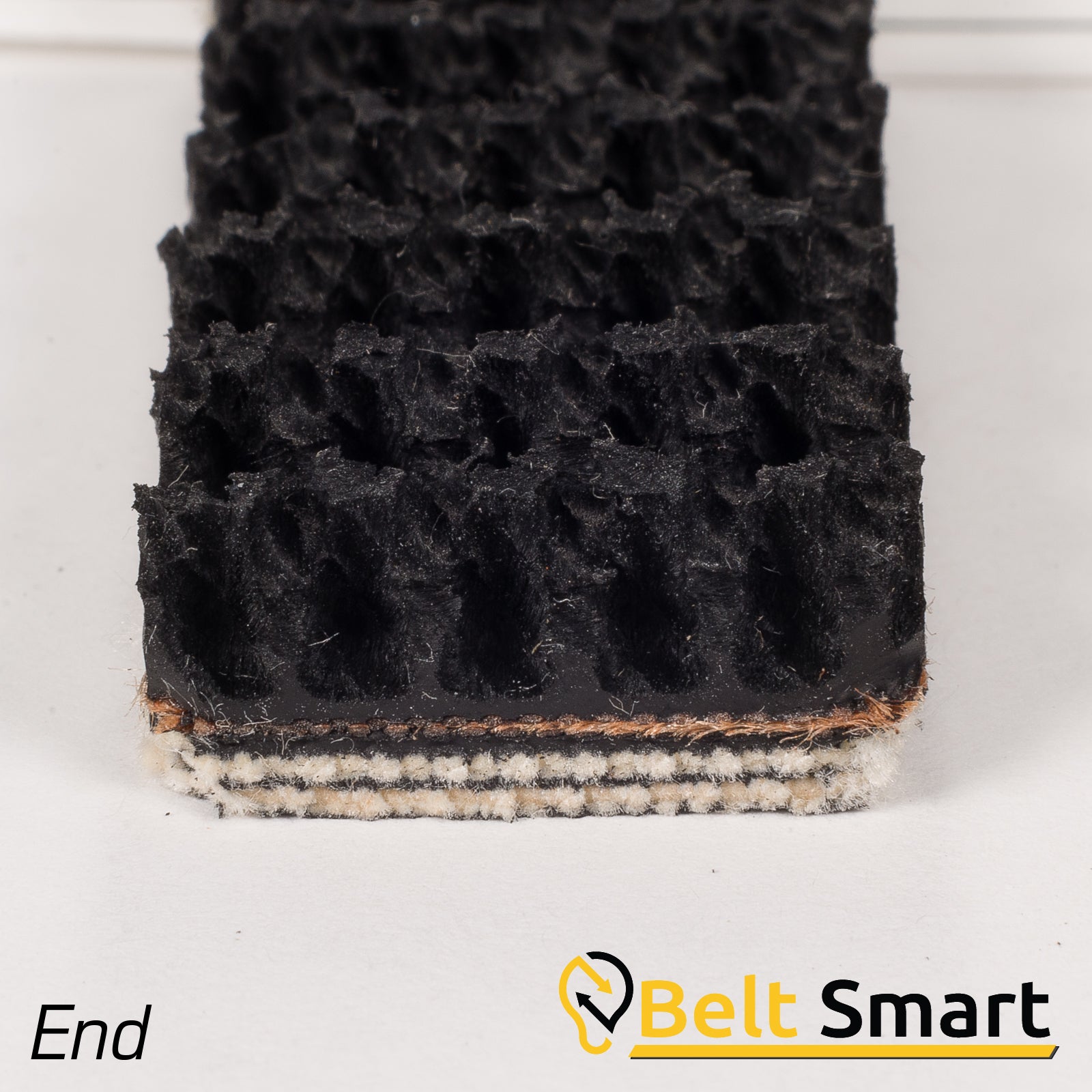

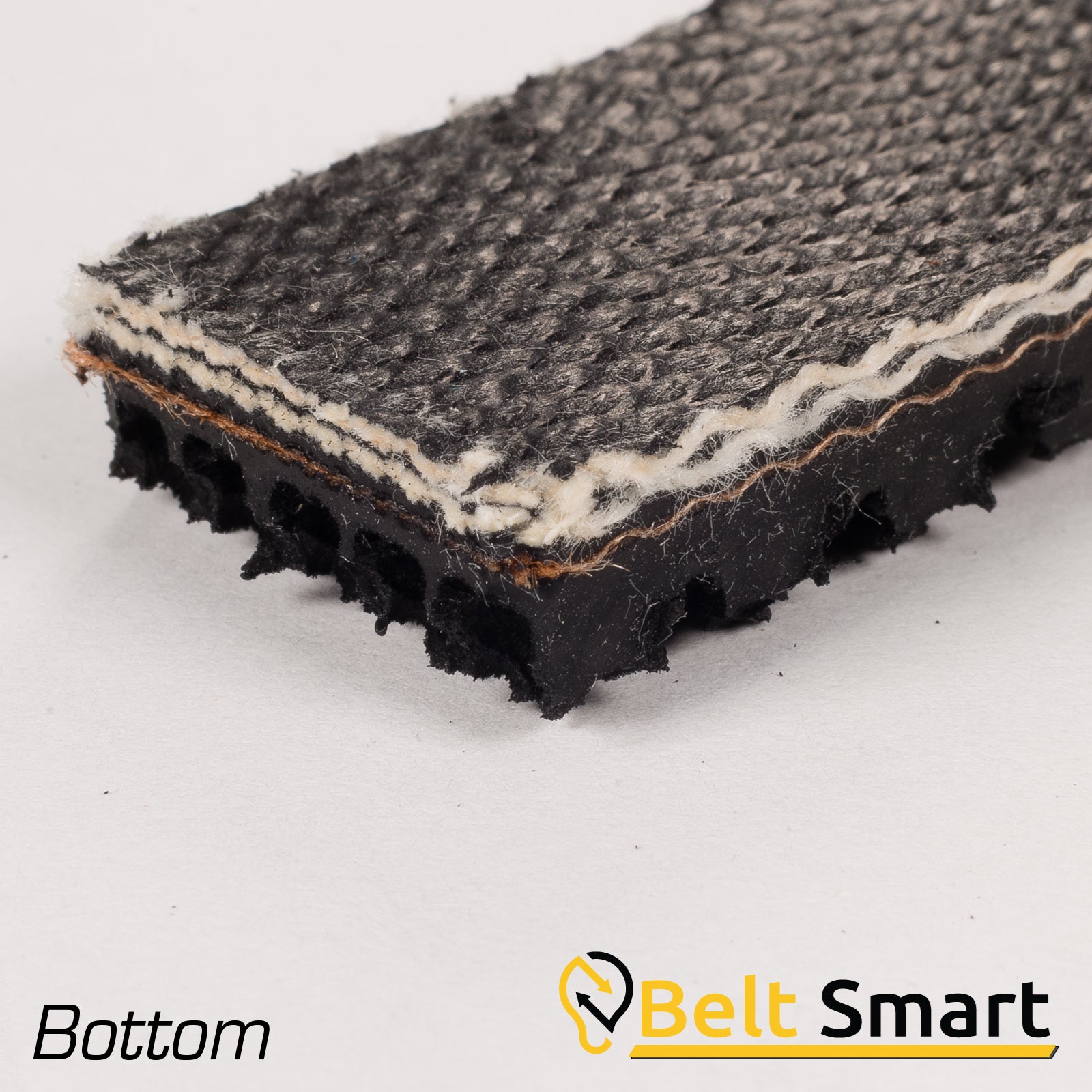

BS056 - #56 Beltservice 3 Ply CP 30 Black Roughtop x FS Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Pulley Lagging
Features:
Long a popular standard in the industry. The cotton/polyester blend carcass of Nos. 56 and 57 gives a hefty appearance and cushioning effect. No. 56a is an excellent choice for high tension systems that require a belt with low-stretch characteristics.

	3 Ply CP 30 Black Roughtop x FS Pt No.: 56	3 Ply 225 Black Roughtop x Bare Pt No.: 56a	4 Ply CP 30 Black Roughtop x FS Pt No.: 57
Thickness	5/16"	N/A	13/32"
Covers	Roughtop x FS	Roughtop x Bare	Roughtop x FS
Carcass	28 oz. Cotton	N/A	28 oz. Cotton
Working Tension per Inch Width	90 lbs.	N/A	112 lbs.
Approx. Weight Lbs. Per Inch Width	.118 lbs.	N/A	.125 lbs.
Min. Pulley Diameter	2-1/2"	N/A	4"
Temperature Range	-40 deg. F / 250 deg. F
Clipper Lace	#1	N/A	#1
Alligator Lace	#7	N/A	#15
Alligator Staple	#125	N/A	#125

FS = Friction Surface
