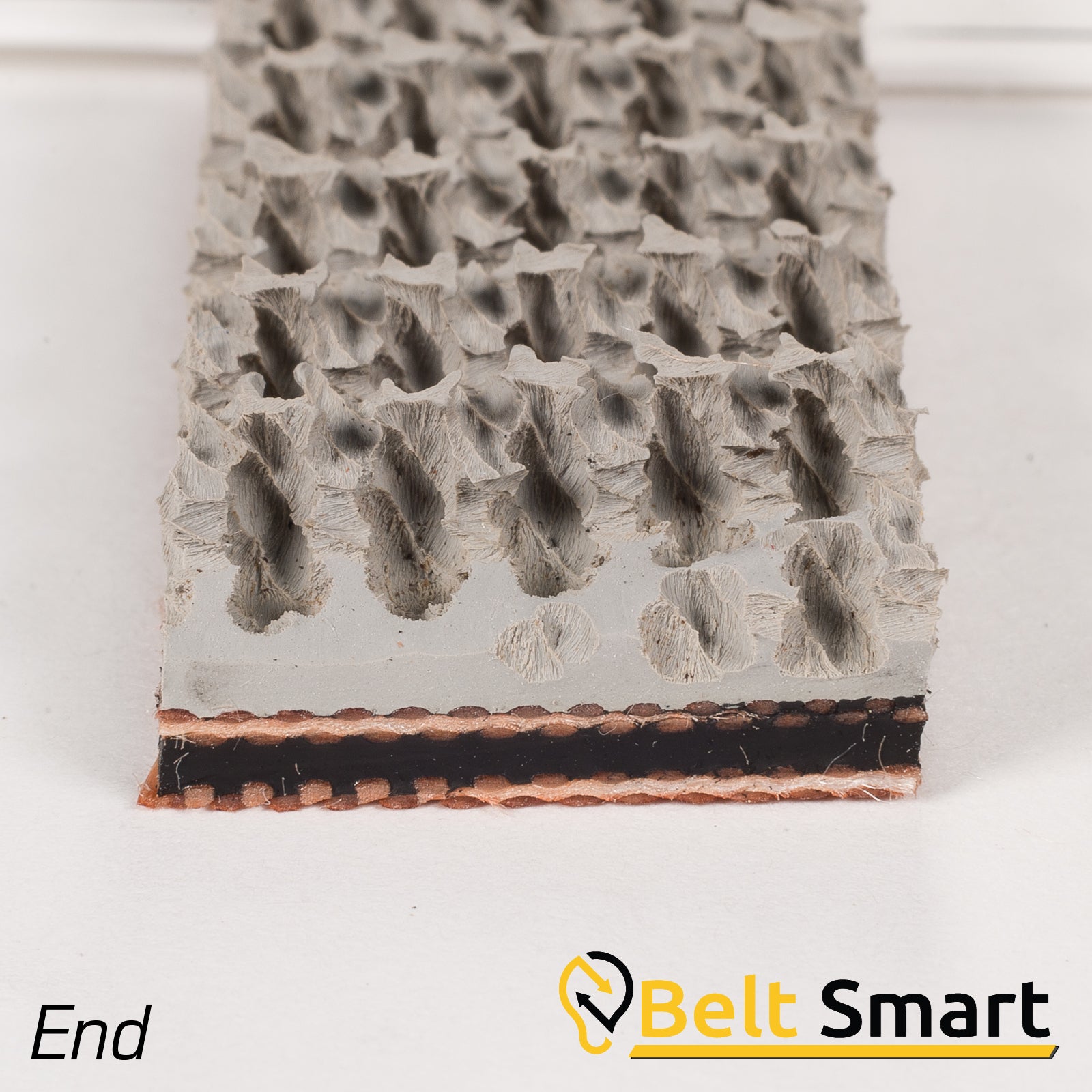

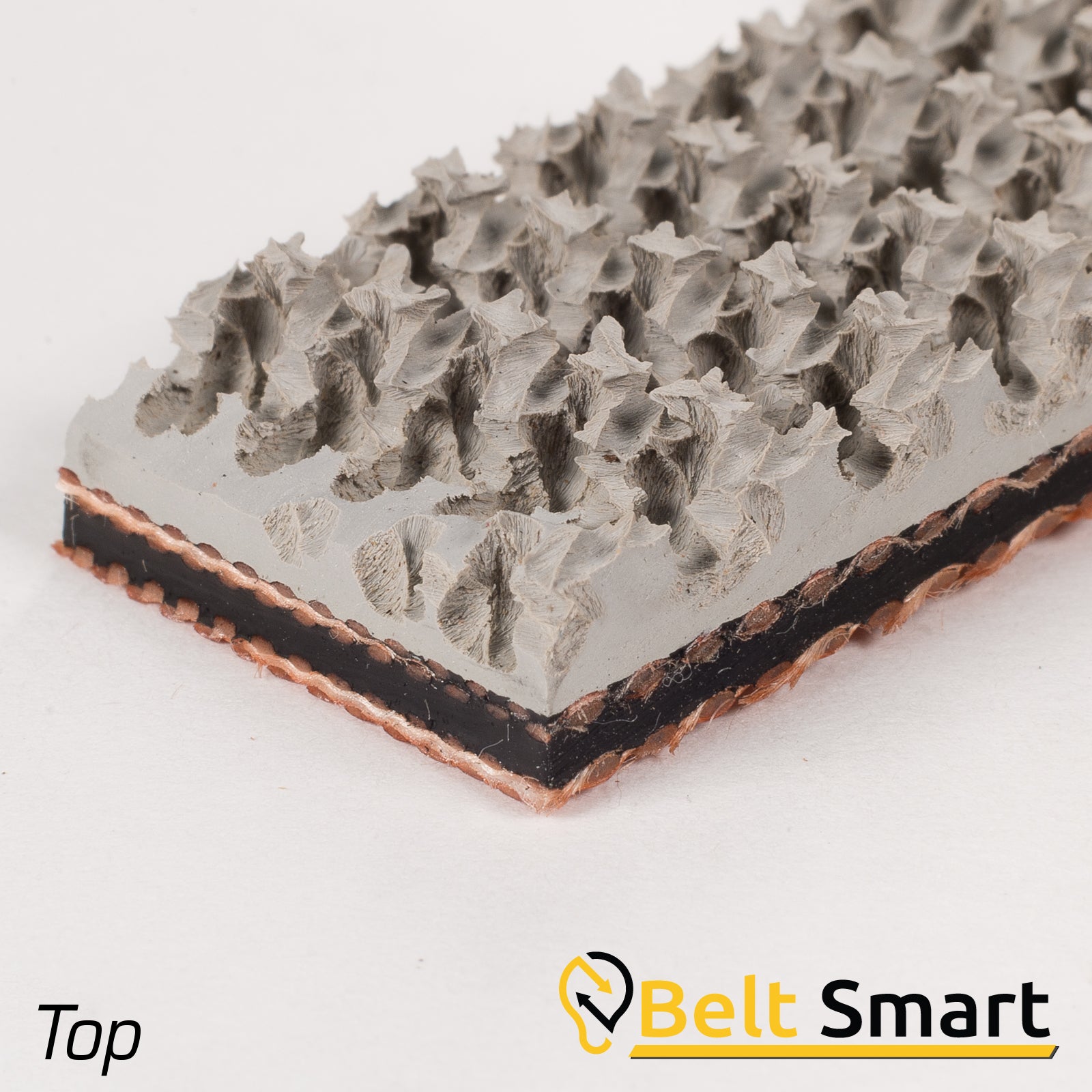

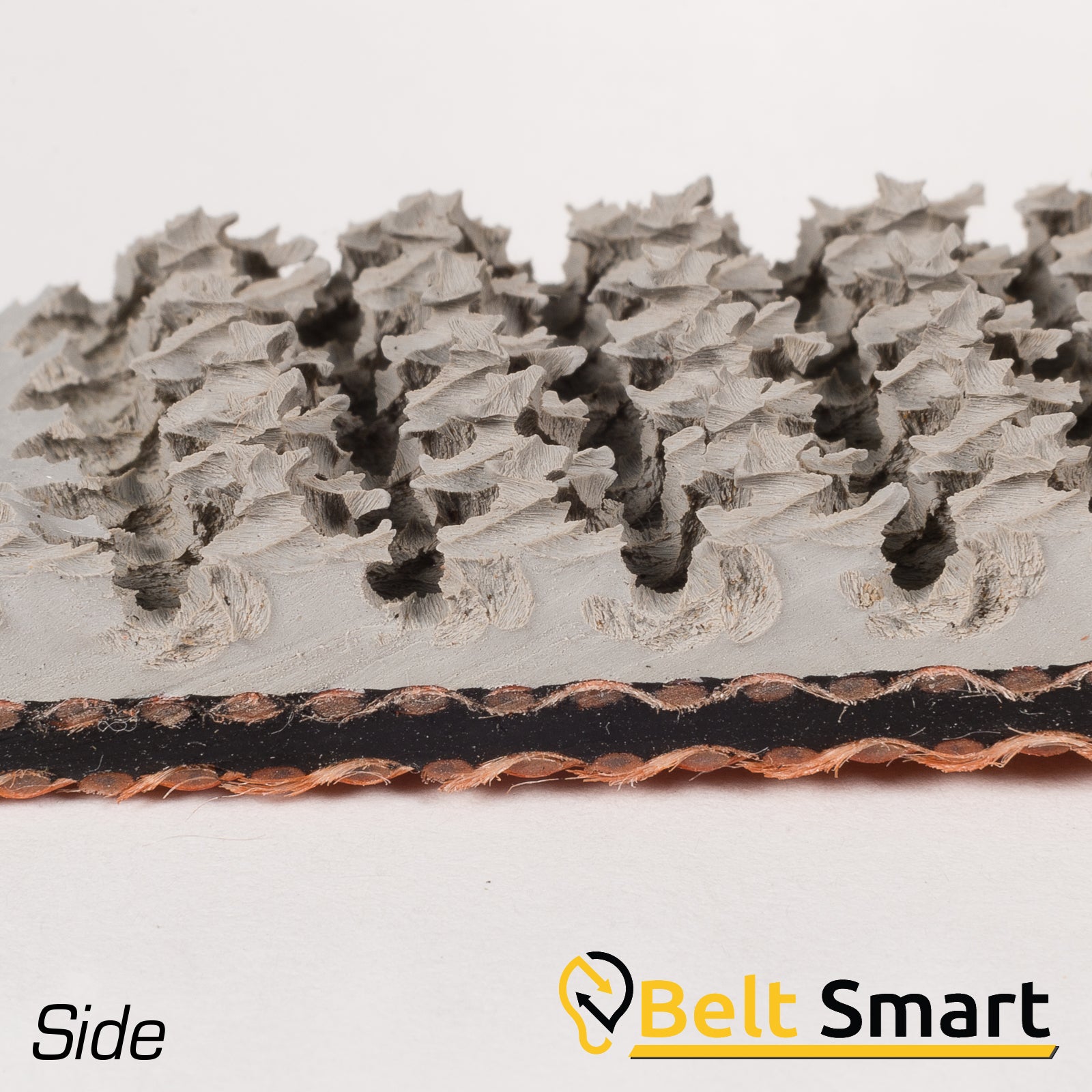

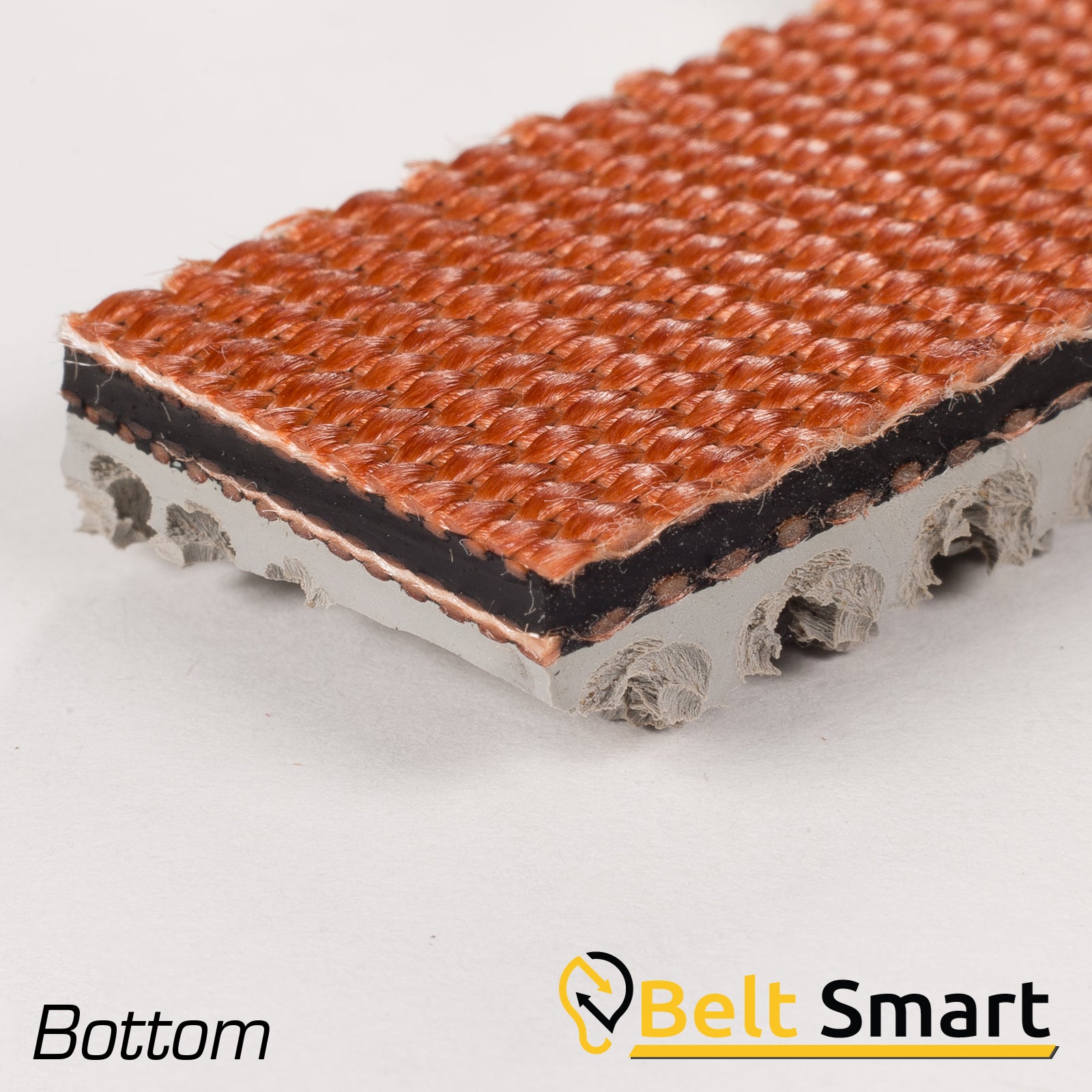

BS055A - #55a Beltservice 2 ply 210 Gray Roughtop x Bare Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying
Features:
Construction is two plies of high-strength, all-synthetic polyester fabrics. Very flexible, yet stretch and moisture resistant incline/decline belts. Tan and gray roughtop are non marking. No. 54(FR) is a premium fire resistant belt and an excellent choice for spiral incline power turn systems
Specifications:
No. 54(FR) is a premium fire resistant belt

	2 Ply 150 Black Roughtop x Bare Pt No.: 54	2 ply 150 Black Roughtop x Bare FR Pt No.: 54FR	2 Ply 150 Tan Roughtop x Bare Pt No.: 55	2 ply 210 Gray Roughtop x Bare Pt No.: 55a
Thickness	9/32"	N/A	9/32"	5/16"
Covers	Roughtop x Bare
Carcass	Polyester
Working Tension per Inch Width	150 lbs.	N/A	150 lbs.	210 lbs.
Approx. Weight Lbs. Per Inch Width	.092 lbs.	N/A	.092 lbs.	.118 lbs.
Min. Pulley Diameter	2"	N/A	2"	6"
Temperature Range	-40 deg. F / 250 deg. F
Clipper Lace	#1	N/A	#1	#2
Alligator Lace	#1	N/A	#1	#15
Alligator Staple	#125	N/A	#125	#125

FR = Fire Resistant
