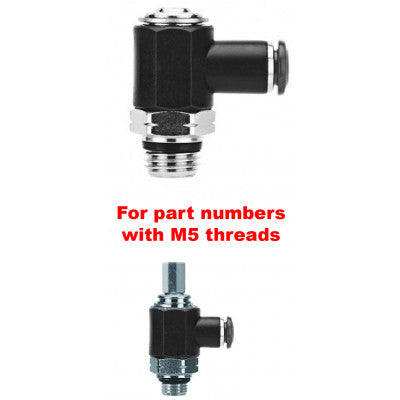

55920-12-1/2 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 12mm Tube x 1/2" Swift-Fit Male Universal Thread
55920-12-1/2 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 12mm Tube x 1/2" Swift-Fit Male Universal Thread

55920-12-1/2 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 12mm Tube x 1/2" Swift-Fit Male Universal Thread

Sale price$23.66
Buy More, Save More!
Quantity Price Each
10–39 $22.24
40–79 $20.11
80+ $17.75
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

90 Degree

Ends Configuration:
  • 12mm Push-to-Connect
  • 1/2in Male Swift-Fit

Metric Tube Needle Valve

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B L1 L2 CH Code
55920-4-M5 4 mm M5 4 mm 19.5 mm 29.5 mm 8 mm B
55920-4-1/8 4 mm 1/8" 5.5 mm 21.5 mm 31 mm 14 mm B
55920-5-M5 5 mm M5 4 mm 20.5 mm 29.5 mm 8 mm B
55920-5-1/8 5 mm 1/8" 5.5 mm 22.5 mm 31 mm 14 mm B
55920-5-1/4 5 mm 1/4" 7 mm 25 mm 36.5 mm 17 mm B
55920-6-M5 6 mm M5 4 mm 21 mm 29.5 mm 8 mm B
55920-6-1/8 6 mm 1/8" 5.5 mm 23 mm 31 mm 14 mm B
55920-6-1/4 6 mm 1/4" 7 mm 25.5 mm 36.5 mm 17 mm B
55920-8-1/8 8 mm 1/8" 5.5 mm 23.5 mm 31 mm 14 mm B
55920-8-1/4 8 mm 1/4" 7 mm 26 mm 36.5 mm 17 mm B
55920-8-3/8 8 mm 3/8" 8.5 mm 27.5 mm 42.5 mm 20 mm B
55920-10-3/8 10 mm 3/8" 8.5 mm 30.5 mm 42.5 mm 20 mm B
55920-12-3/8 12 mm 3/8" 8.5 mm 32.5 mm 42.5 mm 20 mm B
55920-12-1/2 12 mm 1/2" 10 mm 35 mm 47 mm 24 mm B

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
